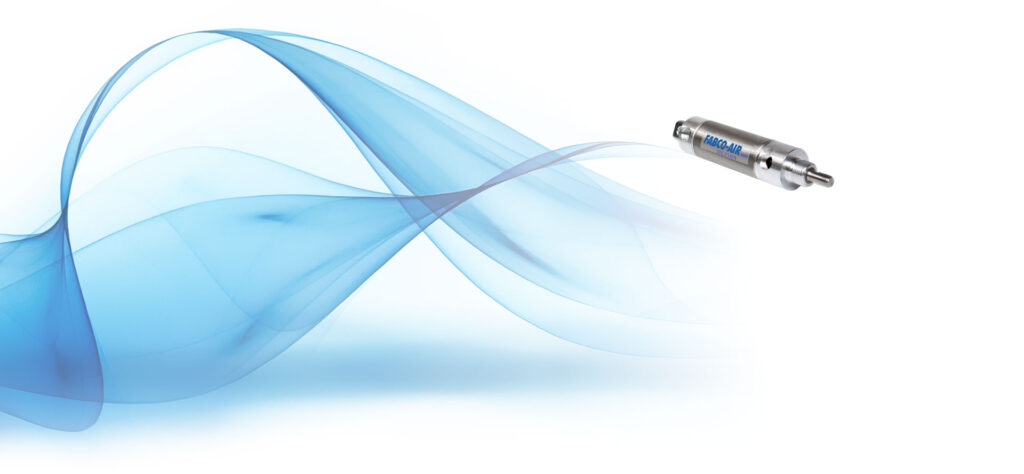

H Series
H Series stainless steel air cylinders are built to withstand harsh environments that can hinder other cylinders. Durable construction features include a 304 stainless steel cylinder tube and a 303 stainless steel piston rod as standard. Maximum air flow, fast cylinder response and smooth rod movement are assured thanks to its full, unrestricted porting design. […]
F Series
For optimum air preparation at the point of use, selecting the right filter to remove undesirable particulate from your air supply is the first step. Whether you’re specifying air preparation components individually or just need a hardworking replacement filter, we have you covered. Offered in four body sizes and six port sizes, our filters can […]

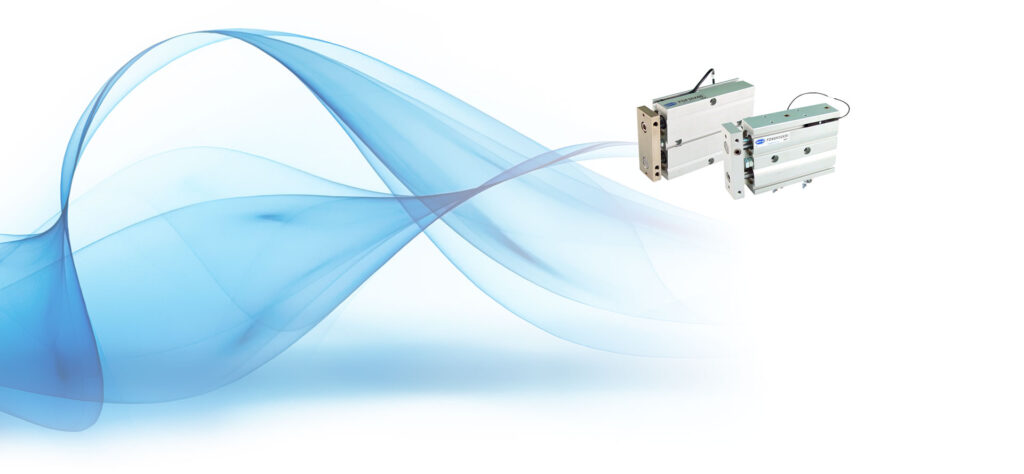

FDF and FDXS Series
When your application demands high force output in a low-profile unit, the FDF and FDXS Series double-acting cylinders are an excellent choice. The cylinders’ twin rods deliver two times the thrust while the non-rotating design and standard magnetic piston ensure precise positioning. The cylinder features a tough, anodized aluminum housing and stainless piston rod. Additional […]
LONGSTROKE Series
LONGSTROKE™ is ideal when you want the compact mounting footprint of a Pancake Cylinder with much longer stroke length. Available in both round and square head designs, this compact, double-acting, tie-rod-type cylinder offers standard strokes up to 12 inches and comes in four bore sizes from 2 to 4 inches. The series features a hard-anodized […]
FAQ2R FAE
ISO cylinders give you the freedom to use internationally compatible mountings and accessories. Our FAQ2R and FAE Series single- and double-rod cylinders are designed to comply with ISO 6431 and 6432 interchange requirements, respectively, to help make installation easier. We updated our ISO 6431 air cylinder with a new extruded body to better house flush-mounted […]
Compact Air Cylinders, Square Pancake® II
Square Pancake® II air cylinders meet the same standards of compact air cylinder quality as the Original Pancake and the Pancake II families. These direct interchange air cylinders in square form provide effective output motion with short strokes in a compact design. Construction features include stainless steel tie bolts and aluminum spacers lock precision machined […]

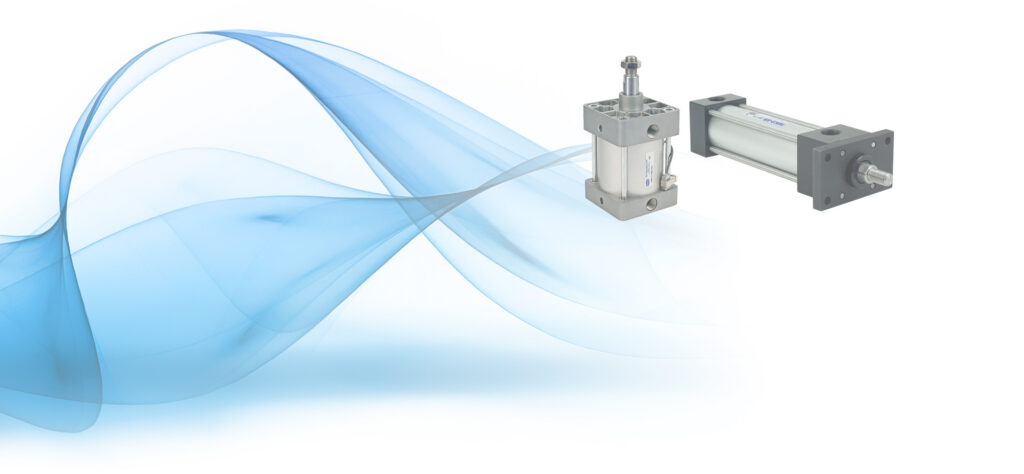

NFPA and OEM NFPA FCQN Series
NFPA Series NFPA pneumatic cylinders combine rugged construction and versatility. Available in a variety of versions and 17 mounting styles, these interchangeable NFPA cylinders allow users to directly replace other manufacturers’ NFPA units of the same type and dimensions for greater design freedom. The cylinder tube is built with a high-strength aluminum barrel, and users […]

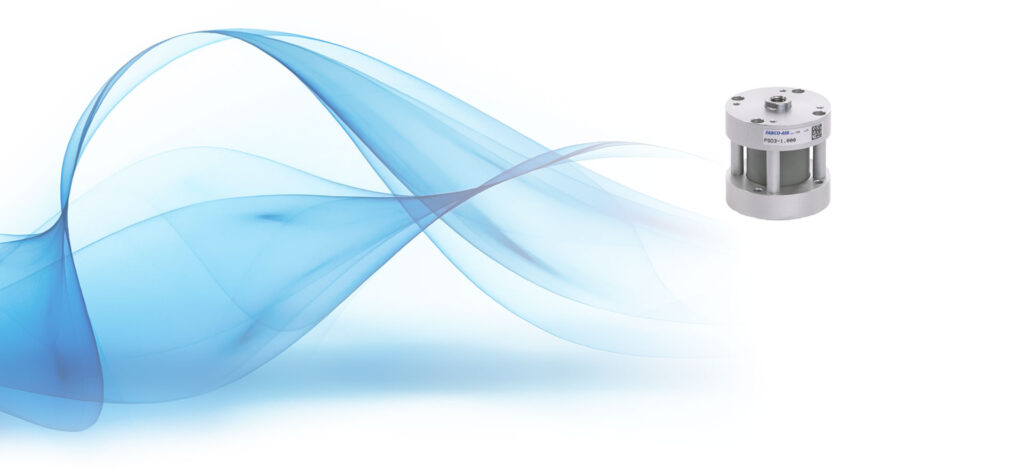

Pancake® II
The Pancake® set the standard of excellence for compact air cylinders, and the Pancake II Direct Interchange Air Cylinder raises the bar even higher. Like the Original, Pancake II provides effective output motion with short strokes in applications with limited space. Stainless steel tie bolts and aluminum spacers lock precision machined heads tightly around a […]

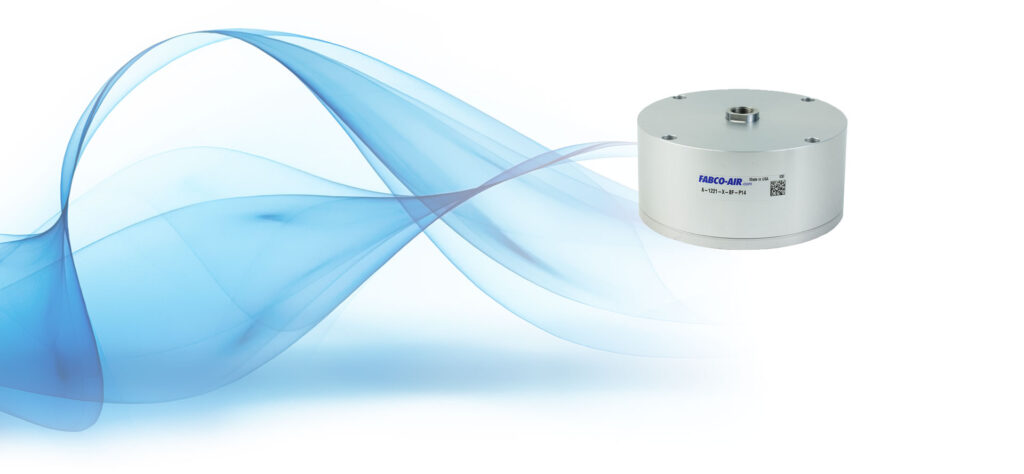

Compact Air Cylinder, The Original Pancake®
Since its invention in 1958 by Al Schmidt, the Original Pancake® pneumatic actuator has been satisfying designers’ needs for short-stroke, low-profile air cylinders that can fit into tight spaces. The Pancake line’s combination of features, options, quality, strength, appearance and longevity have made us the leader in compact air cylinders. Pancake cylinders offer novel features […]

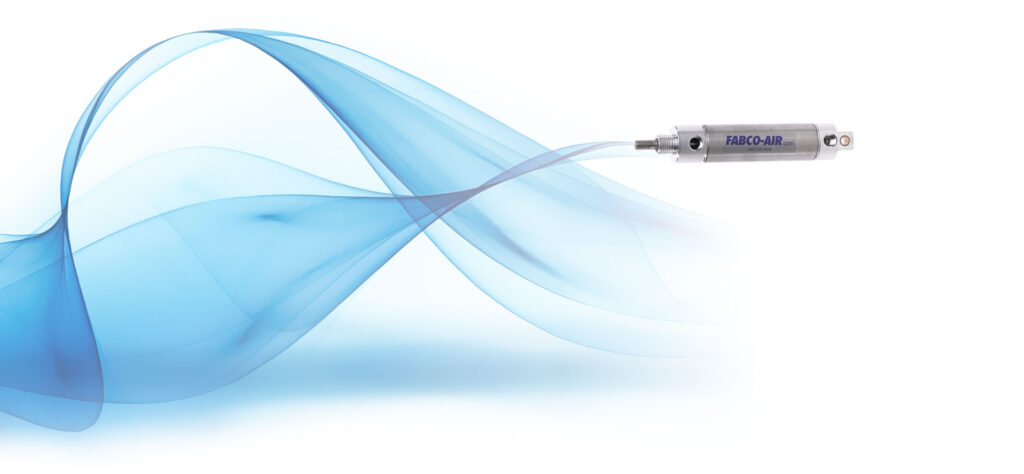

F Series Direct Interchange Air Cylinders
When it comes to light-duty, space constrained applications, F Series air cylinders will satisfy all your requirements. Available in 11 bore sizes from 9⁄16 through 3 inches and with stroke lengths to 32 inches, all models in this economical series of cylinders are directly interchangeable, bore for bore and stroke for stroke. The F Series […]
