Direct Interchange Round Body Air Cylinders

F Series

Cost-Optimized, Light-Duty Cylinders Deliver High Performance and Reliability.

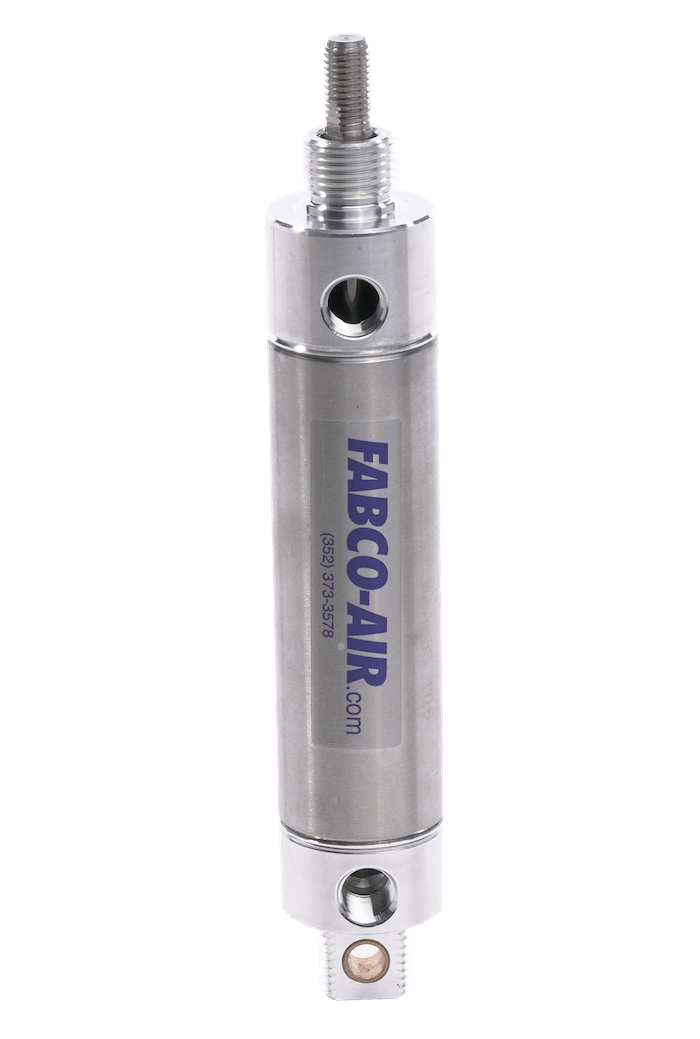

When it comes to light-duty, space constrained applications, F Series air cylinders will satisfy all your requirements. Available in 10 bore sizes from 9⁄16 through 3 inches and with stroke lengths to 32 inches, all models in this economical series of cylinders are directly interchangeable, bore for bore and stroke for stroke.

The F Series is built tough. Featuring a 304 stainless steel air cylinder tube and 303 stainless steel, ground, polished and roller-burnished cylinder rods, these durable cylinders perform reliably in harsh conditions. A high-strength aluminum piston is standard, and full-flow ports and cross-slots on the end caps allow air passage to the entire piston and seal area for quick response and full force performance. Additional features include pre-lubrication using a special petroleum-based oil for maintenance-free operation, a rod bushing made with oil-impregnated sintered bronze for wear resistance and long life, and Buna-N U-cup rod and piston seals.

Key Specifications

Features
  • Available in 9 bore sizes: 9⁄16, 3⁄4, 7⁄8, 1 1⁄16, 1 ¼, 1 ½, 1 ¾, 2, 2 ½, and 3 inches
  • Standard stroke lengths up to 32 inches
  • Extended strokes available on request
  • 304 stainless steel air cylinder tube drawn and polished for low friction and long life
  • Buna-N U-cup rod and piston seals
  • 303 stainless steel, ground, polished and roller burnished cylinder rods standard
  • Pressure rated to 250 psi pneumatic service
  • Magnetic piston option available for cylinder position sensing
  • Many standard options available
Technical Advantages
  • Roll-formed rod threads at both ends add strength for customer connections as well as the internal piston connection. Oil impregnated sintered bronze bushing has excellent wear resistance to ensure long life.
  • High-strength aluminum piston. Double-acting units include air passage to the entire piston and seal area for quick response and full force performance.

Application Examples

  • Packing and filling
  • Food processing equipment
