FJS Series
FJS Series air cylinders function as drop-replacements for the discontinued Global Series.™ Units deliver short strokes in a compact design — similar to Original Pancake® cylinders — but are designed to meet international requirements. Interchangeable with other metric-based pneumatic designs in bore sizes ranging from 12 to 100 millimeters, and stroke lengths ranging from 5 […]

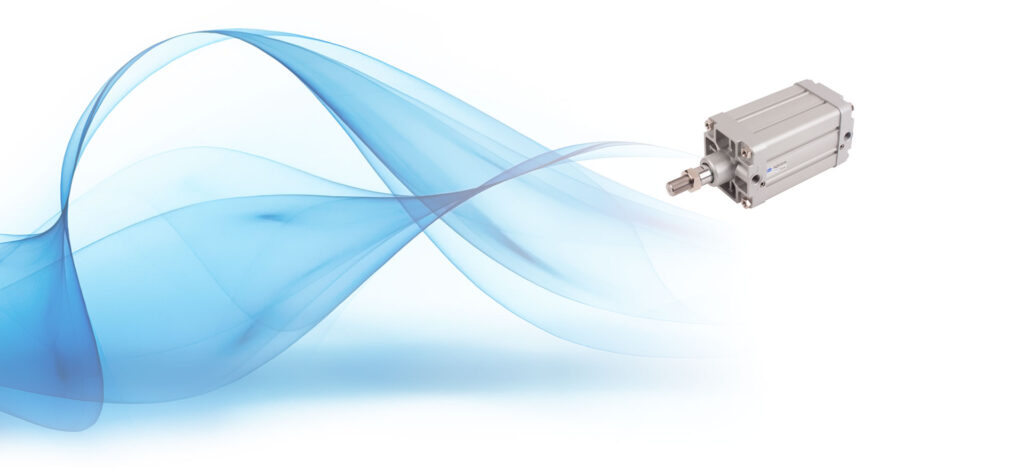

FAQ2R
ISO cylinders give you the freedom to use internationally compatible mountings and accessories. We updated our FAQ2R Series ISO 6431 air cylinder with a new extruded body to better house flush-mounted sensors while also giving it a clean shape. The single- and double-rod units are built tough with a hard-anodized aluminum cylinder inner and outer […]

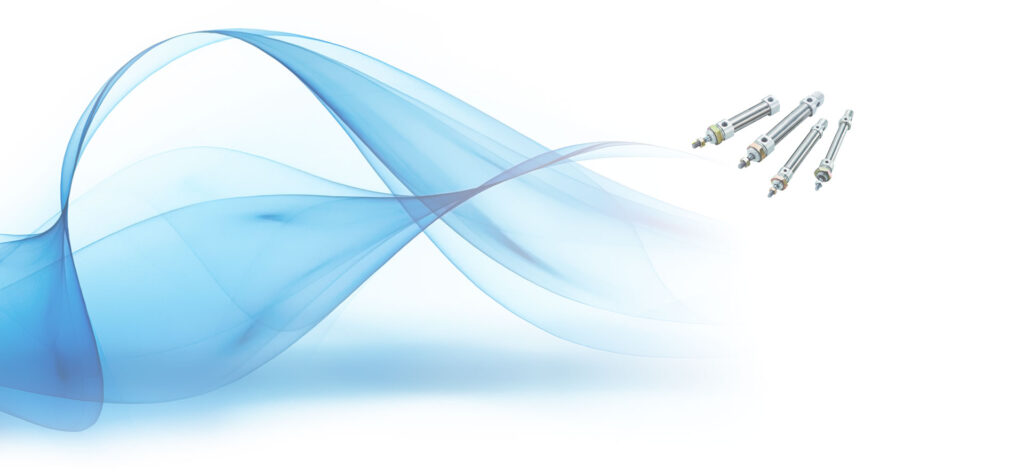

FAE Series
FAE Series single and double rod cylinders are built to ISO 6432 dimensions. The family is available with bore diameters of 12 to 40 millimeters, and maximum strokes are as high as 1,000 millimeters for single rod and 500 millimeters for double rod units. Designed for long life, cylinders with bore diameters up to 25 […]

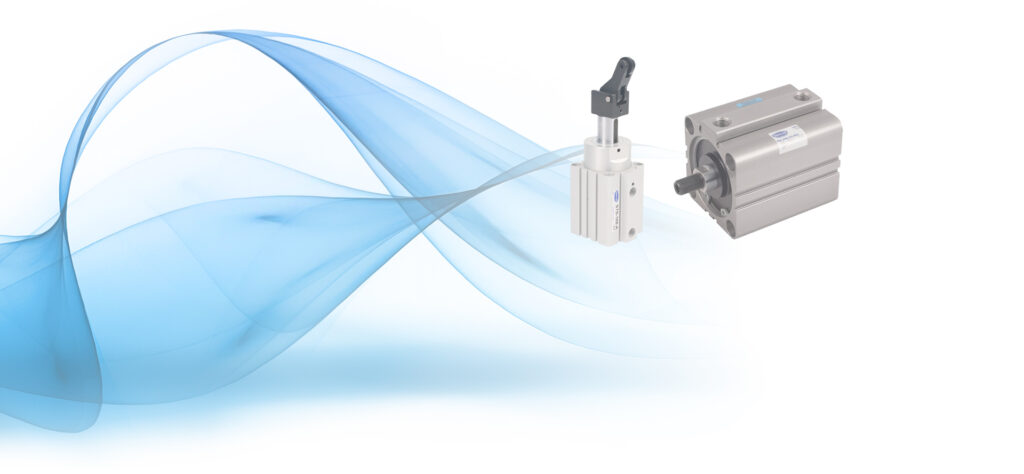

Stopper Cylinders, ST Series and Global Stopper Cylinder
Fabco-Air stoppers are ideal cylinders for conveyors and other machines that need to decelerate a load before impact. ST Series Stoppers Available in bore sizes from 32 to 50 millimeters, the ST Series comes in a variety of styles to address different requirements: round rod, non-rotating rod, rollers that adjust direction according to application needs, […]

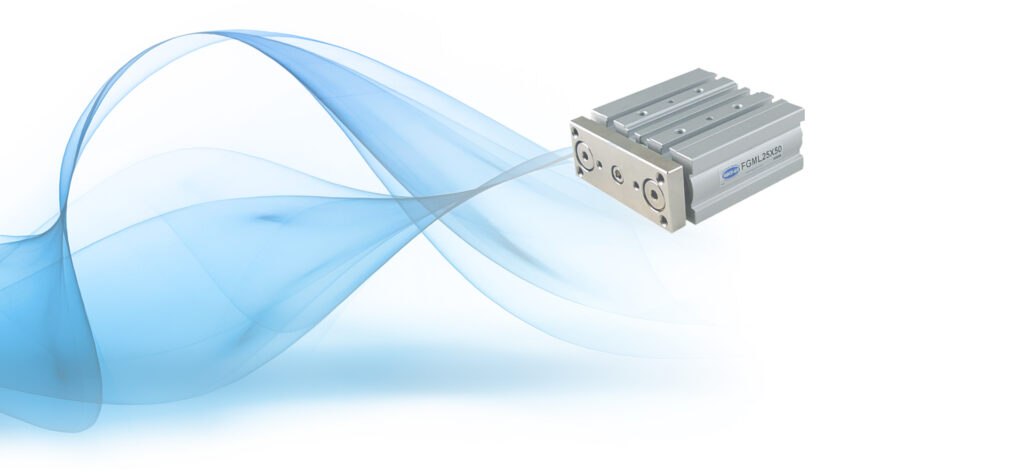

FGM and FGML Series
FGM Series guided motion cylinders offer an extended power range and effective load carrying capability. These compact units feature a twin guide shaft design to ensure precise, non-rotating positioning. Customers can choose between the FGMM for ball bearings, and the FGML sintered bronze sleeve bearing. Both cylinders come in a variety of bore sizes, and […]
Global Series™ and GT Series
The Global Series™ is Fabco-Air’s extruded-body international counterpart to the Original Pancake® air cylinder. This metric, interchangeable air cylinder line, like the Pancake, is designed to deliver short-strokes and fit into tight spaces. Pressure rated to 150 psi for both pneumatic and hydraulic service, the Global Series comes with bore sizes ranging from 12 to […]

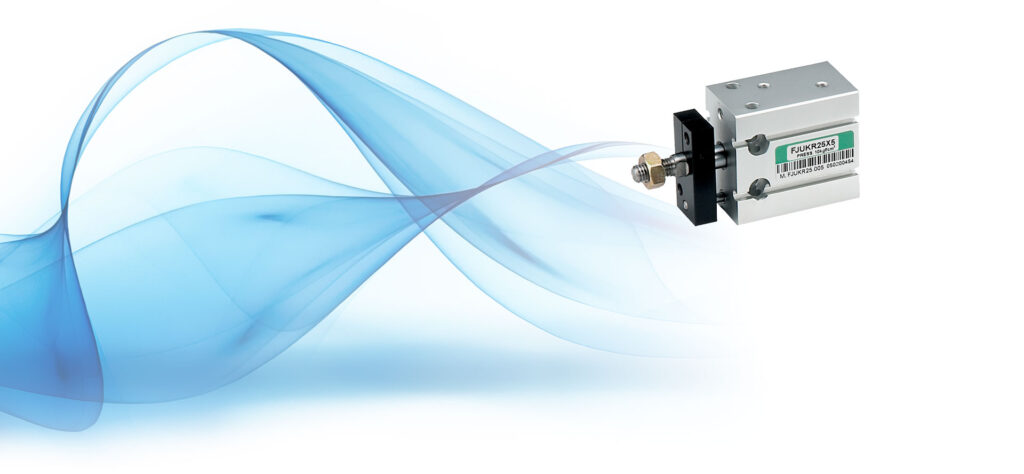

FJU and FJUK Series
FJU multi-mount cylinders are designed to provide mounting flexibility and convenience. These small, lightweight units save space, while their rectangular design creates mounting surfaces on the rod end, cap end, sides and bottom. They also include four extruded slots for sensor mounting on the top or bottom of the cylinder. Each unit comes with a […]

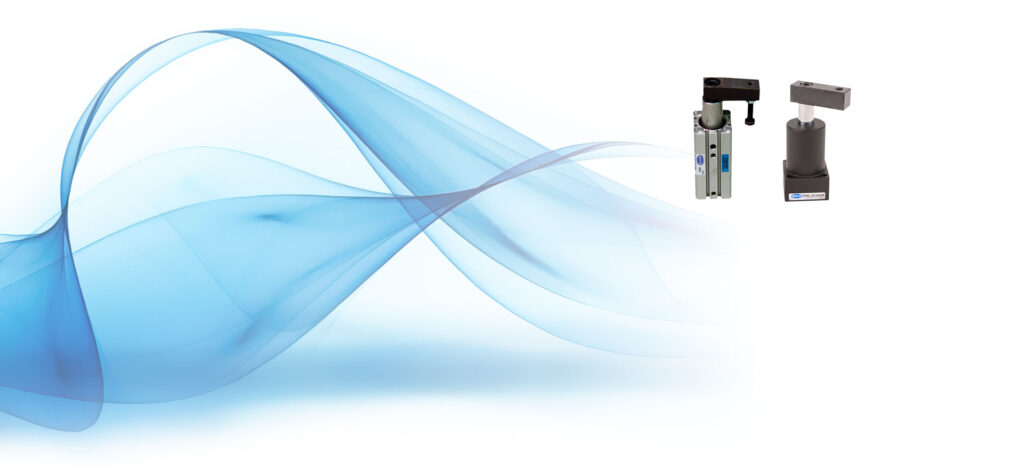

SC, FML and FHL Series
SC, FML and FHL swing clamps offer pneumatic or hydraulic operation, depending on the series, and several action types. Durable SC Series double-acting swing clamps provide a standard magnetic piston for position sensing plus workpiece protection features. The SC Series’ clamp arm has a built-in adjusting bolt, while the FML and FMH Series are available […]
Square 1®
Square 1® air cylinders feature short strokes and a compact size to fit into any application. The square design of this double-acting, single-rod unit allows users to decrease the center-to-center spacing for applications that need multiple cylinders. Built for durability, the Square 1’s heavy walls are made from hard-anodized aluminum, both inside and outside the […]

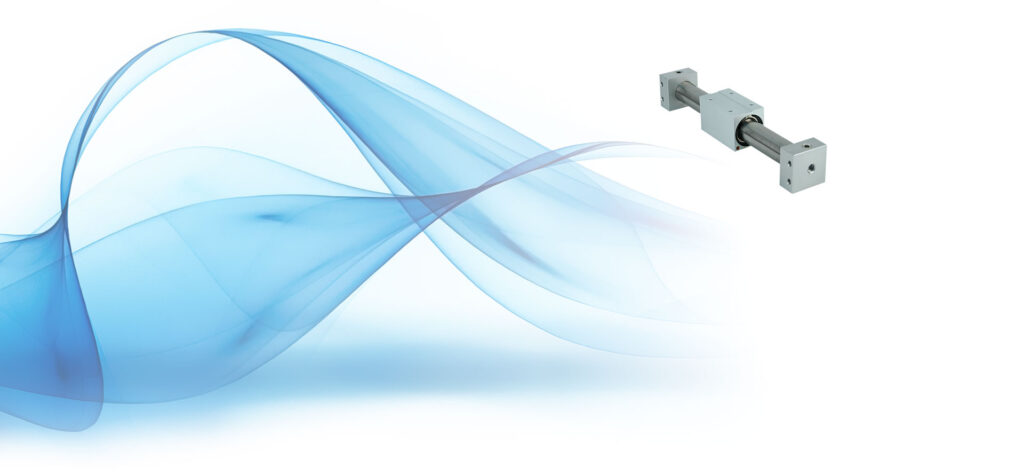

FGYB and FGYR Series
When the application calls for a pneumatic cylinder inside a space-constrained area, our FGYB and FGYR Series of rodless cylinders can be an ideal choice. These cylinders are designed so there’s no piston rod protruding from the unit. Instead the external slider is magnetically coupled to the piston, providing good output motion while saving space. […]
