Tie Rod Cylinders

LONGSTROKE™ Series

Achieve Longer Strokes With Pancake®-style Space Savings

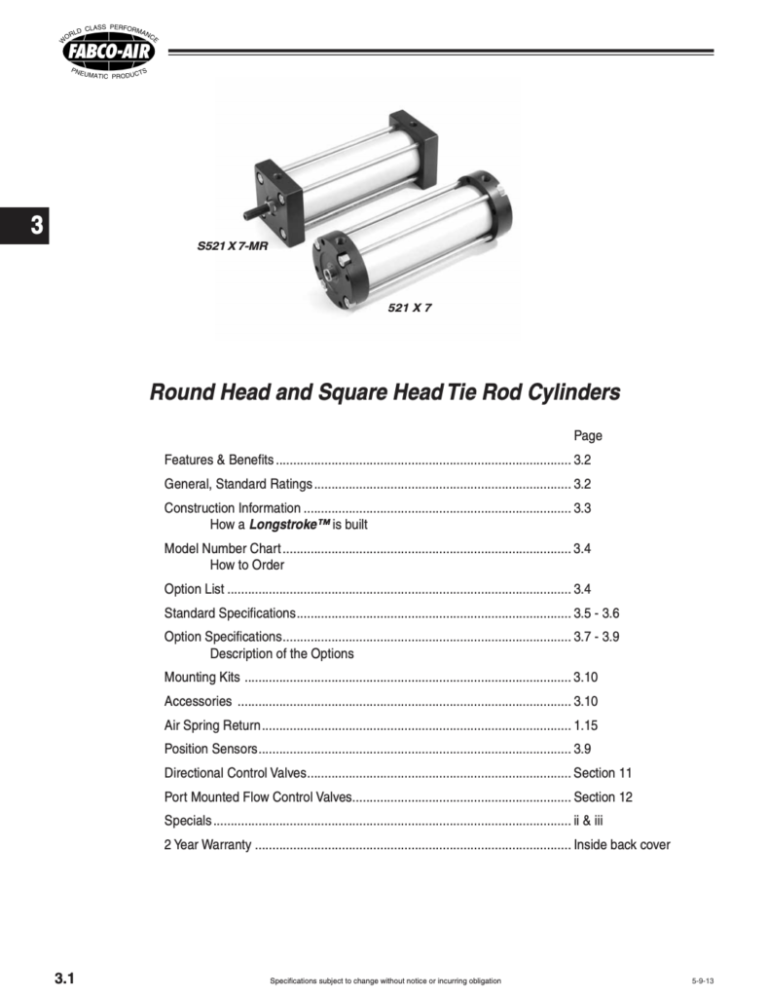

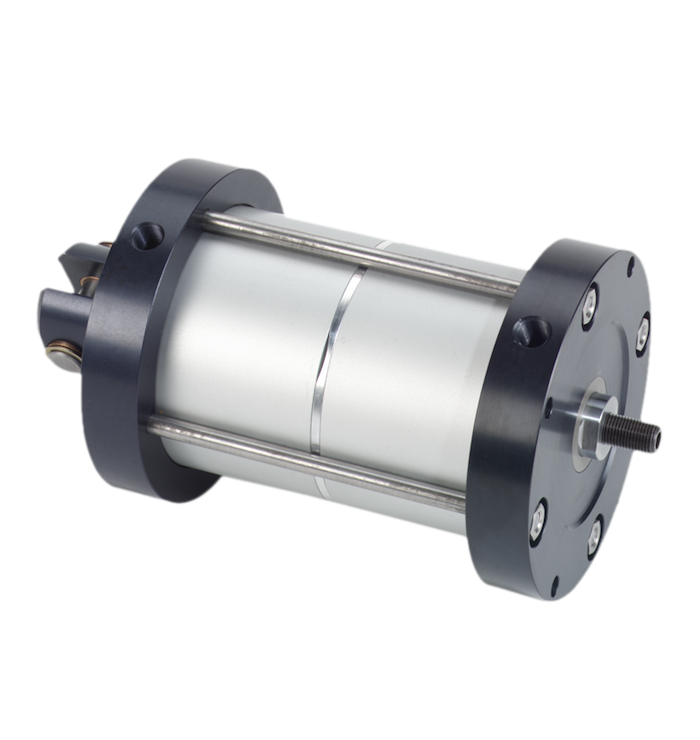

LONGSTROKE™ is ideal when you want the compact mounting footprint of a Pancake Cylinder with much longer stroke length. Available in both round and square head designs, this compact, double-acting, tie-rod-type cylinder offers standard strokes up to 12 inches and comes in four bore sizes from 2 to 4 inches.

The series features a hard-anodized cylinder barrel, chrome-plated steel piston rod, high-performance composite rod bearing and pre-lubrication with Magnalube-G® grease to ensure a long lifetime. LONGSTROKE cylinders operate at 250 psi pneumatic and 500 psi hydraulic service, and they are easy to mount.

Key Specifications

Features
  • Round and square heads available
  • Available in four bore sizes: 2, 2 ½, 3 and 4 inches
  • Standard strokes to 12 inches
  • Tie rod construction
  • Clear anodized aluminum cylinder outer diameter
  • Hard anodized bore inner diameter
  • Composite rod bearing for longer life
  • Prelubed with Magnalube-G® grease
  • Chrome-plated stainless steel piston rods
  • Internally lubricated Buna-N O-ring piston and rod seals
  • Air service to 250 psi; hydraulic service to 500 psi
  • Many options to choose from
  • Magnetic piston sensing available
Technical Advantages
  • Rugged construction features include clear anodized aluminum material for the cylinder outer diameter and a hard anodized inner diameter bore.
  • The chrome plated stainless steel piston rod adds longevity to the cylinder.
  • The extra-long piston rod bearing provides long and rigid support for the piston rod. The bearing material is non-metallic high-performance composite.
  • High-strength, high-performance composite resists corrosion, moisture and temperatures up to 325° F, while offering a high load capacity and very little friction.
  • Magnalube-G PTFE-impregnated grease provides a long operating life and lubricates across a wide temperature range.

Application Examples

  • Conveyor belts
  • Warehouse equipment
  • Fixture manufacturing
  • Plastics manufacturing
