Comprehensive Actuator Lineup Meets Your Exact Requirements


We have an extensive and diverse selection of actuators to accommodate a host of pneumatic systems and equipment types. From the Original Pancake® that set the standard for quality compact cylinders to Pancake II, LONGSTROKE™, square, twin-bore and ISO-type styles, you’ll find the actuator you need with the quality you demand.

We build quality into our actuators with materials such as anodized aluminum for the bodies, stainless steel for piston rods and a special non-magnetic composite so bushings stand up to harsh conditions. Many cylinders also come pre-lubricated with Magnalube-G® Teflon™-impregnated grease for a long operating life. Each actuator boasts a wide range of features and options plus a complete range of bore sizes and stroke lengths to meet your exact requirements.

Our Products

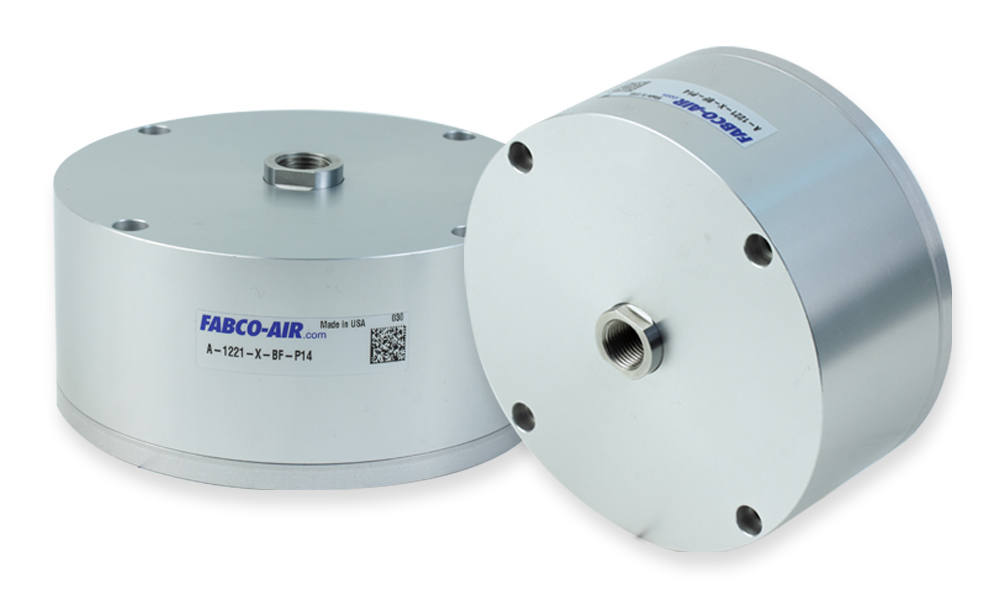

Compact Air Cylinder

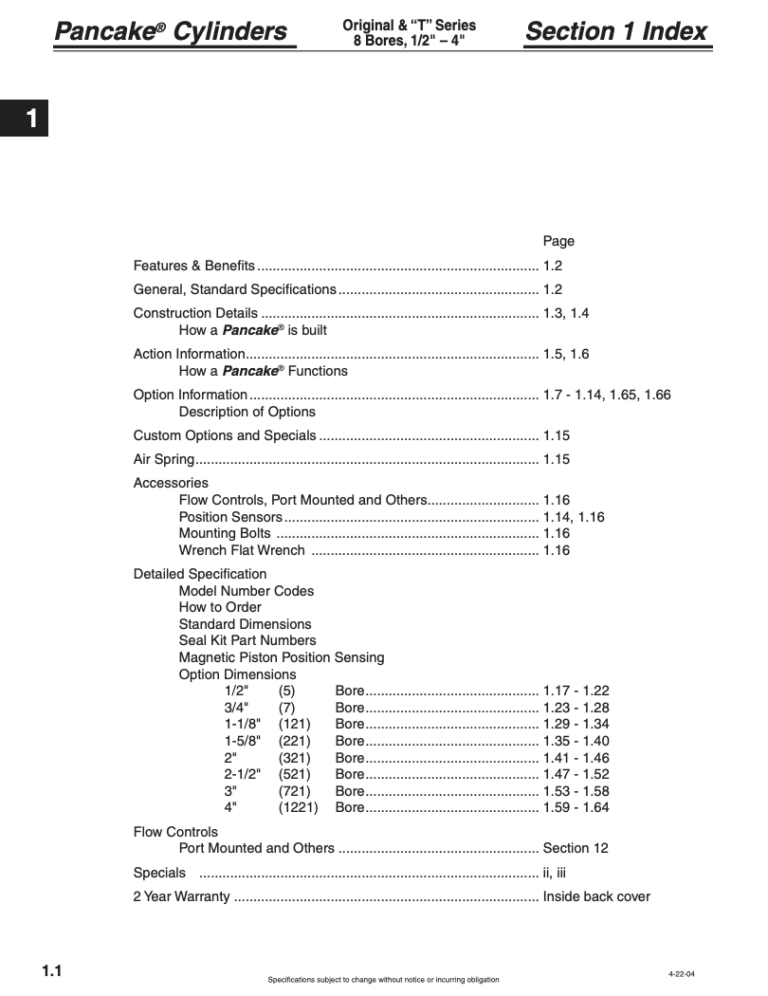

Original Pancake®

  • Bore sizes: ½, ¾, 1 ⅛, 1 ⅝, 2, 2 ½, 3 and 4 inches
  • Strokes: up to 4 inches
  • Pressure rated to 250 psi pneumatic and 500 psi hydraulic service
  • Heavy wall to protect the bore from damage
  • Clear anodized cylinder bodies: smooth corrosive-resistant exterior prevents debris buildup
  • Hard chrome-plated stainless steel piston rod adds longevity to the cylinder
Direct Interchange Air Cylinder

Pancake® II

  • Bore sizes: ½, ¾, 1 1/16, 1 ½, 2, 2 ½, 3 and 4 inches
  • Strokes: up to 9 inches
  • Effective output motion with short strokes for space-constrained applications
  • Impact-resistant composite cylinder barrel
  • Hard chrome-plated stainless steel piston rod
  • Composite rod bearing for reduced wear
Interchangeable Compact Air Cylinders

Square Pancake® II

  • Bore sizes: ¾, 1 1/16, 1 ½, 2, 2 ½, 3 and 4 inches
  • Strokes: up to 9 inches
  • Effective output motion with short strokes for space-constrained applications
  • Impact-resistant composite cylinder barrel
  • Hard chrome-plated stainless steel piston rod
  • Composite rod bearing for reduced wear
Round Body Air Cylinders

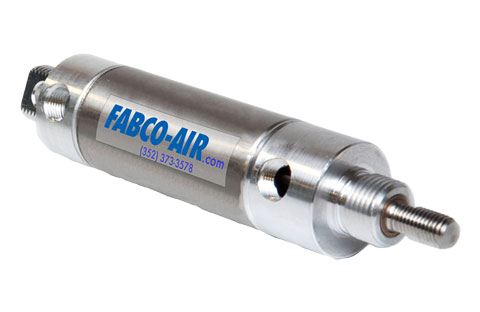

H Series Humphrey Interchange

  • Bore sizes: ½, ¾, 1 1/16, 1 ¼, 1 ½, 1 ¾, 2 and 2 ½ inches
  • Strokes: up to 12 inches
  • Legacy actuator for applications where an F Series roundbody cylinder is not an option.
  • Pressure rated to 200 psi pneumatic service
  • Magnetic piston option for cylinder position sensing
  • Many standard options and configurations available
Round Body Air Cylinders

F Series

  • Bore sizes: 5/16, 7/16, 9/16, ⅞, 1 1/16, 1 ¼, 1 ½, 1 ¾, 2, 2 ½, and 3 inches
  • Strokes: up to 32 inches
  • 304 stainless steel air cylinder tube drawn and polished for low friction and long life
  • Buna-N U-cup rod and piston seals
  • 303 stainless steel, ground, polished and roller burnished cylinder rods standard
  • Magnetic piston option available for cylinder position sensing
Metric Interchange Cylinders

Global Series™ and GT Series

  • Bore sizes: 12, 16, 20, 25, 32, 40, 50, 63, 80 and 100 millimeters
  • Strokes: up to 150 millimeters
  • High quality, compact air cylinder bodies machined from the highest quality aluminum bar-stock
  • Air cylinder bodies hard anodized for superior appearance and corrosion resistance
  • Cylinders pre-lubed with Magnalube-G® Teflon™-impregnated grease

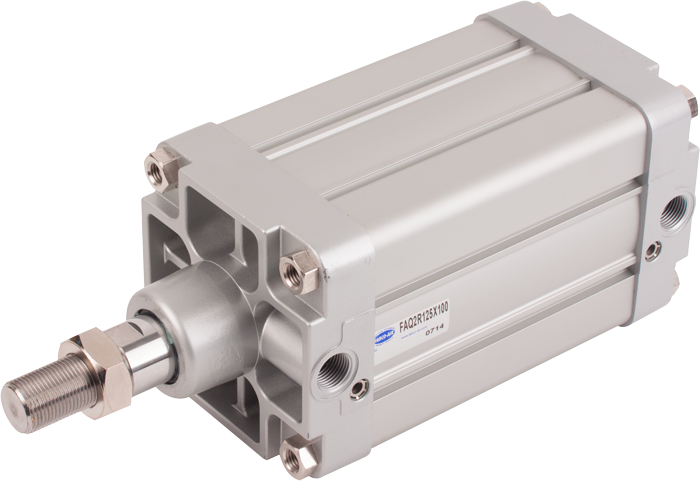

ISO 6431 Actuators

FAQ2R Series

  • Bore sizes: 32, 40, 50, 63, 80, 100, 125 millimeters
  • Strokes: up to 1,000 millimeters
  • Magnetic piston standard in all sizes
  • Single and double-rod versions
  • ISO 6431 dimensional interchange
  • VDMA24562 compliance
  • Adjustable air cushions at both ends
ISO 6432 Actuators

FAE Series

  • Bore sizes: 12 to 40 millimeters depending on barrel construction
  • Strokes: up to 1,000 millimeters (single rod) and 500 millimeters (double rod)
  • ISO 6432 dimensional interchange and CETOP RP52P compliant
  • Available in single and double-rod versions
  • Magnetic piston standard in all sizes
Air Cylinders

Square 1®

  • Bore sizes: 12, 16, 20, 25, 32, 40, 50, 63, 80 and 100 millimeters
  • Strokes: up to 150 millimeters
  • Pressure rated to 150 psi for both pneumatic and hydraulic service
  • Machined from the highest quality aluminum bar-stock and hard anodized for corrosion resistance
  • Cylinders pre-lubed with Magnalube-G® Teflon™-impregnated grease
Tie Rod Cylinders

LONGSTROKE™ Series

  • Bore sizes: 2, 2 ½, 3 and 4 inches
  • Strokes: up to 12 inches
  • Round and square heads available
  • Clear anodized aluminum cylinder outer diameter and hard anodized bore inner diameter
  • Composite rod bearing for longer life
  • Chrome-plated stainless steel piston rods
Swing Clamp Cylinders

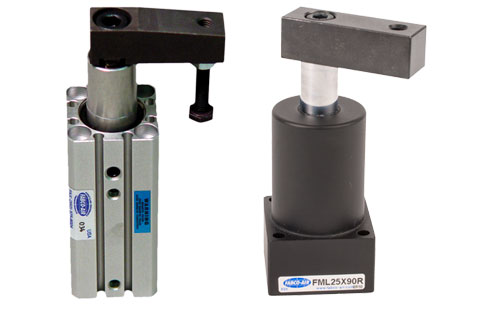

SC, FML and FMH Series

  • Bore sizes: 25, 32, 40, 53, 63 millimeters (12, 16, 20 millimeters also available for SC Series)
  • Hard anodized aluminum alloy housing
  • Hard chrome-plated carbon steel piston rod
  • Buna-N piston seal
  • Magnetic piston for position sensing (SC Series)
Twin-Rod Cylinder

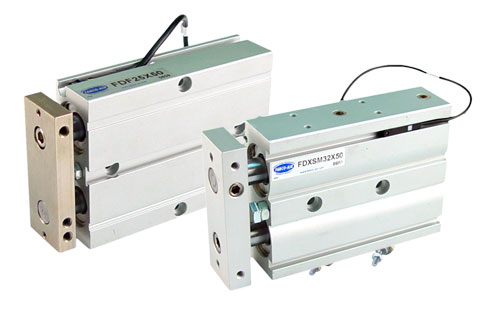

FDF and FDXS Series

  • Bore sizes: 10, 16, 20, 25 millimeters (32 millimeters also available for FDXS Series)
  • Strokes: up to 100 millimeters
  • Magnetic piston standard in all sizes
  • Compact design
  • Twin bores provide double the thrust
  • Non-rotating design for precision positioning
  • Anodized aluminum alloy
Magnetically Coupled Rodless Actuators

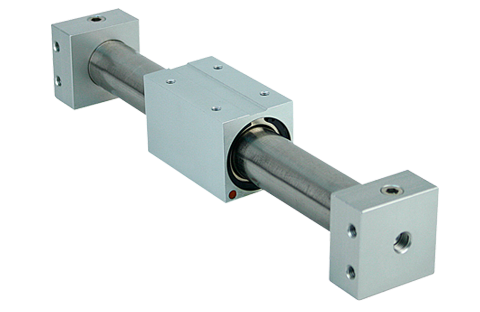

FGYB and FGYR Series

  • Bore sizes: 10, 15, 20, 25, 32, 40 millimeters
  • Strokes: up to 1,500 millimeters
  • Tapped hole pattern on two adjacent sides of the slider
  • Mounting: Nose type (FGYB Series) and block type (FGYR Series)
  • Magnetic piston standard (FGYR Series)
Guided Motion Actuators

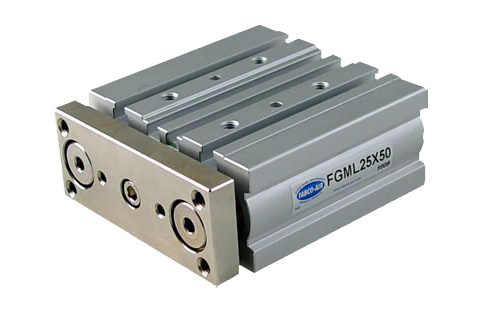

FGM Series

  • Bore sizes: 12, 16, 20, 25, 32, 40, 50, 63 millimeters
  • Strokes: up to 100 millimeters
  • Magnetic piston standard in all sizes
  • Non-rotating design for precision positioning
  • Compact design
  • Extended power range
  • Good load carrying capacity
Multi-mount Air Cylinders

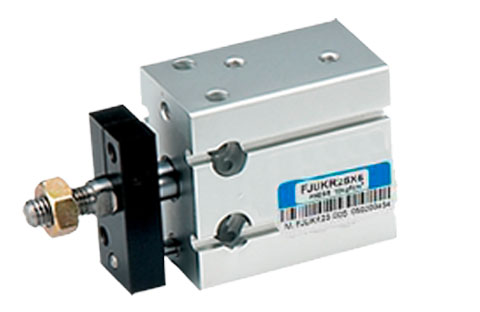

FJU and FJUK Series

  • Bore sizes: 6, 10, 16, 20, 25, 32 millimeters
  • Strokes: up to 50 millimeters
  • Lightweight, compact body
  • Four extruded slots for mounting sensor
  • Hard anodized aluminum for corrosion resistance
  • Hard chrome-plated steel piston rod

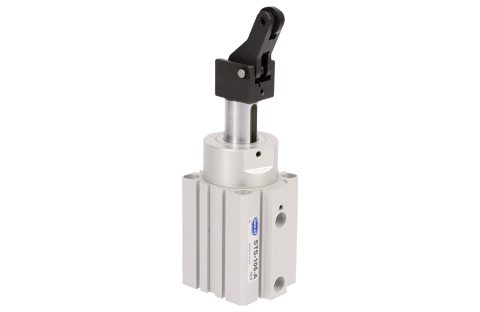

Stopper Cylinders

ST and Global Series™

  • ST Series: 32, 40 and 50 millimeter bores and operation at 145 psi
  • ST Series: Piston speed: 50 to 100 mm/second
  • ST Series: Buna-N bumpers at both ends
  • Global Series: 32 millimeter bore and operation at 150 psi
  • Global Series: Mounting flange made of black anodized aluminum
  • Global Series: Magnalube-G® lubrication

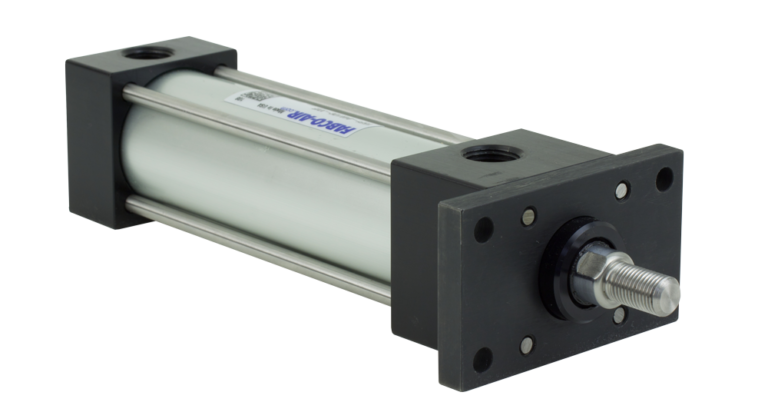

NFPA-Standard Actuators

NFPA and OEM-NFPA FCQN

  • Interchangeable with NFPA standard dimensions
  • Magnetic pistons for position sensing
  • NFPA Series models: All stainless steel, tandem cylinders, three-position and back-to-back models
  • Lubricated with Magnalube-G® Teflon-impregnated grease
  • Durable construction
