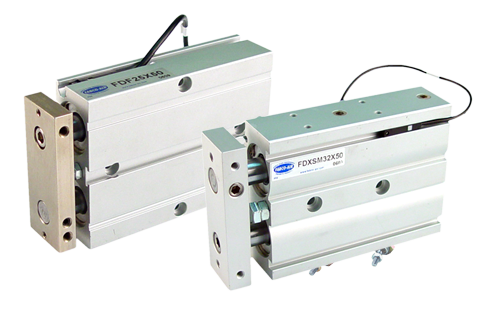

Twin-Rod Cylinder

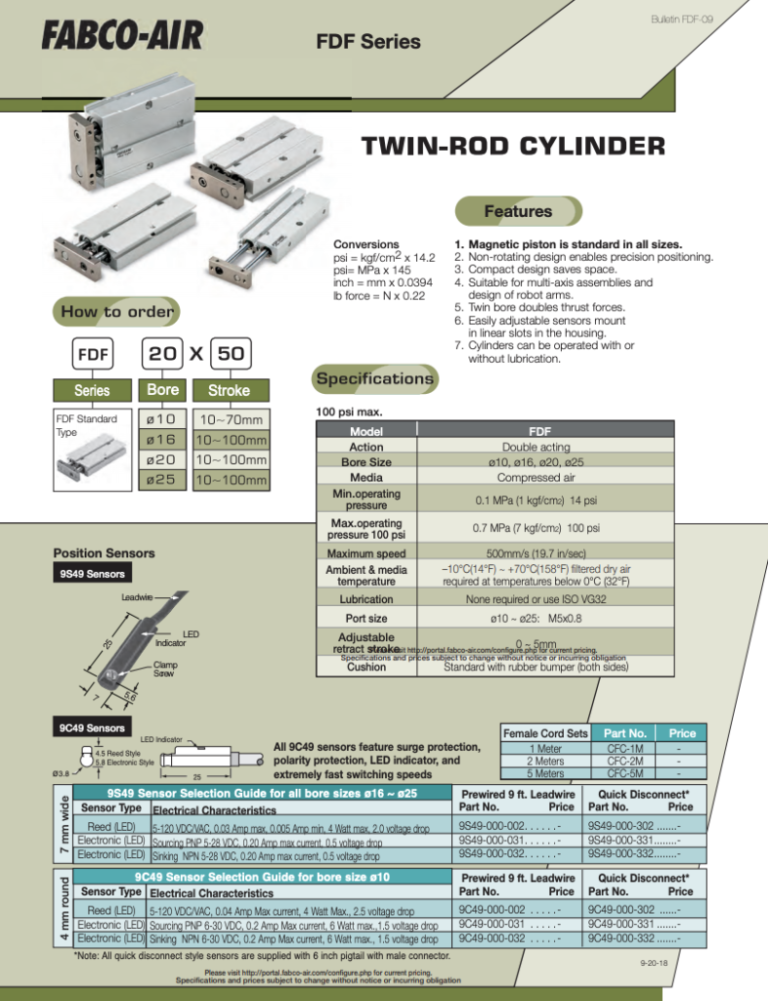

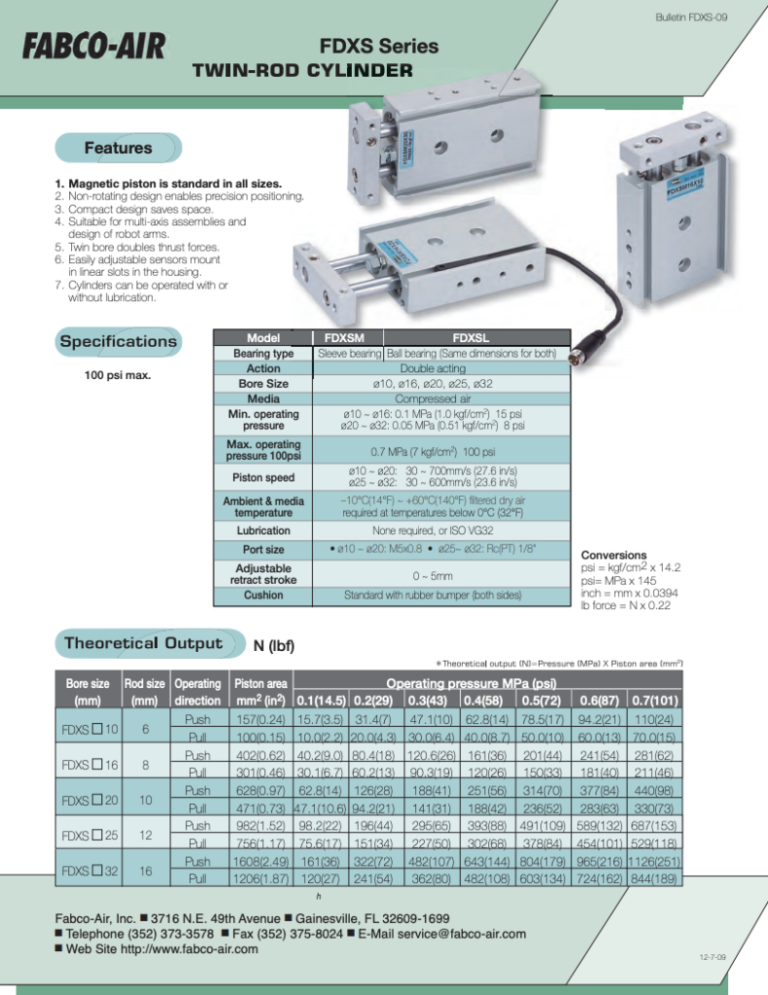

FDF and FDXS Series

Providing Reliable Pneumatics Systems for Over 60 Years

Quality pneumatic components and systems demand quality air. That’s why we offer a full line of air preparation products to make sure critical parts throughout your system run at their best and last a long time. Our FA Series of products features individual filters, regulators, lubricators and separators plus FRLs and other combination units to ensure clean and uniform air flow to critical parts. We also help you keep personnel and equipment out of harm’s way with lockout/tagout and soft-start valves. And, our quick exhaust valves can help improve cylinder performance. Whatever your design or budget requires, there’s a Fabco-Air air preparation product or combo to meet your exact needs, ensuring your system will perform optimally and reliably for a maximum service life.

Key Specifications

Features
  • Bearing:
    • FDF Series: Sleeve bearing
    • FDXS Series: Recirculating ball or sleeve
  • Bore diameters:
    • FDF Series: 10, 16, 20, 25 mm
    • FDXS Series: 10, 16, 20, 25, 32 mm
  • Strokes from 10 to 100 mm
  • Magnetic piston standard in all sizes
  • Compact design
  • Twin bores provide double the thrust
  • Non-rotating design for precision positioning
  • Anodized aluminum alloy housing
  • Stainless steel piston rod
  • Nitrile Buna-N piston rod seal and piston seal
  • Operating pressure: 100 psi
  • Optional, easily adjustable sensors
  • Rubber bumpers on each end
Technical Advantages
  • The twin bore, non-rotating design provides double the thrust forces with precision positioning.
  • The cylinders are built for durability with an anodized aluminum housing and end covers. The piston rod is made of stainless steel.
  • The cylinders interchange easily with some competitive models.



Related Industries

Application Examples

  • Multi-axis assemblies
  • Robotic arm designs
  • Cosmetic filling machines
  • Beverage dispensing equipment
  • Label tamping
  • Secondary tamping
