Precision Slide Tables

FGXS Series

High Load Capacity in a Space-Saving Design


Series FGXS is a twin-bore precision table slide that uses a rail bearing system for smooth operation. Users can choose from three mounting styles for optimal flexibility, and dowel holes and slots on the table surface allow for accurate, repeatable workpiece mounting. Magnetic position sensors are standard on all table slides, and two pistons provide excellent thrust. Bore sizes range from 6 to 25 millimeters and standard strokes range from 10 to 150 millimeters.

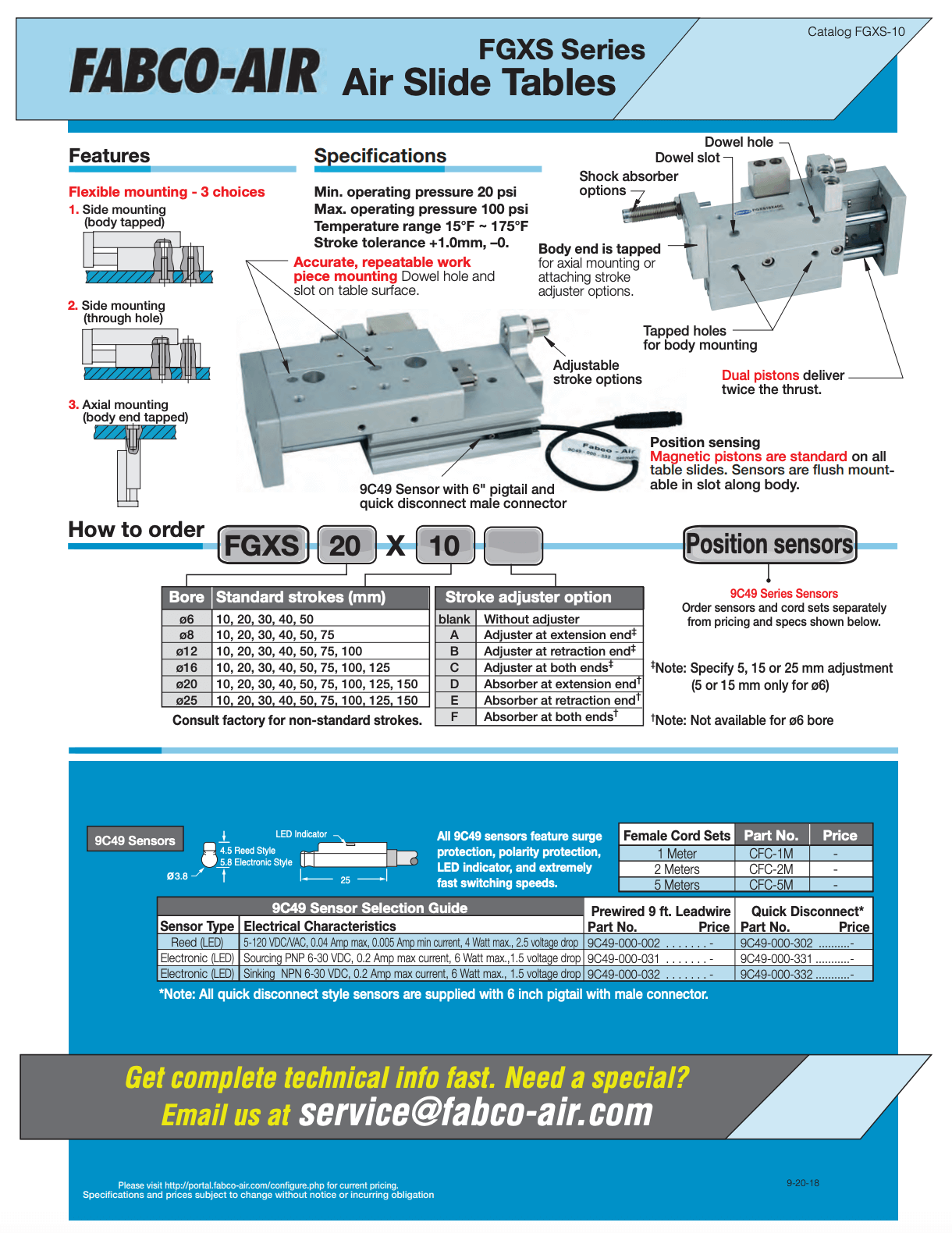

Key Specifications

Features
  • Accurate, repeatable workpiece mounting
  • Standard position sensors
  • Side mounting — body tapped or through hole
  • Axial mounting — body end tapped
  • Standard magnetic pistons and sensor mounting slots
  • Adjustable stroke and shock absorber options
  • Dual piston
Technical Advantages
  • Flexible mounting via choice of three mounting styles
  • Dual pistons deliver twice the thrust
  • Recommended sensors feature surge protection, polarity protection, LED indicator and extremely fast switching speeds

Application Examples

  • Industrial automation, assembly and packaging
    • Robotics
    • Pick & place machinery
    • Thin parts placers
    • Pallet lift stations
  • Automotive
  • Medical imaging

Custom Solutions

Multi-Power Air Cylinder and Linear Slide Combination for Hydraulic Shock and Speed Control

Multi-Power Air Cylinder and Linear Slide Combination for Hydraulic Shock and Speed Control

Fabco-Air created a Multi-Power air cylinder and a linear slide combination that provides adjustable strokes, high power and precision guiding for an automotive application. This custom unit can supply 4,720 pounds of force at 100 psi.

Get A Quote »

Custom Dual Slide for Washdown Environment

Custom Dual Slide for Washdown Environment

Designed for an application requiring a compact design of two linear pneumatic slides, integrated into a single housing. One of the two slides is actually designed for three position actuation to achieve a truly unique result. All of this was encased in a single, hard anodized body with stainless hardware to enable washdown resistance.

Get A Quote »

Compact Series Slide with Integrated Rod Lock

Compact Series Slide with Integrated Rod Lock

Focusing on an application with a tight footprint, this design incorporates a rod lock directly into the bearing block of the slide. This enabled the precision and side load capabilities of a slide while still fitting in the prescribed envelope.
