Precision Finger Slides

FDH Series

Tough, Feature-Rich, Space-Saving Pneumatic Slides With Convenient Mounting

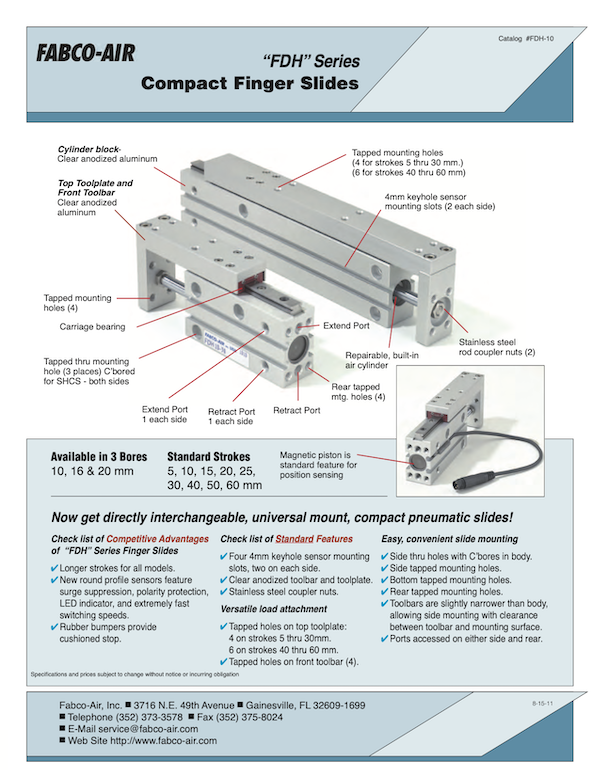

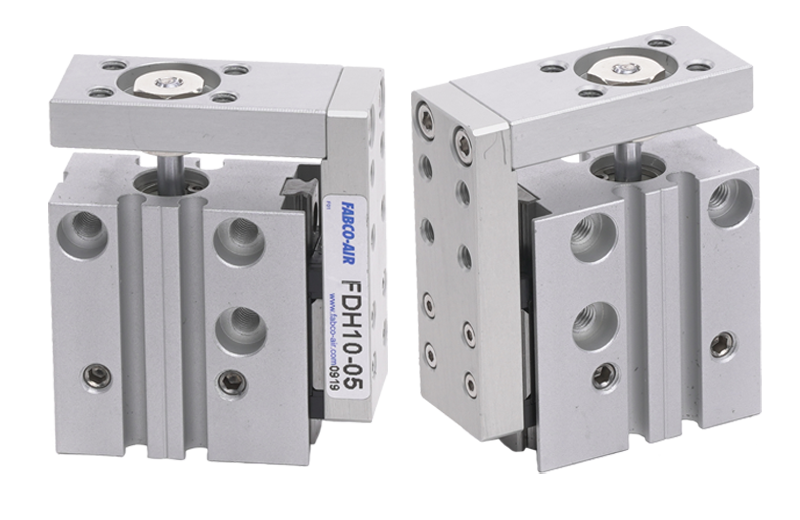

The FDH Series compact finger slide combines small size, sturdy construction, flexible mounting and a rail bearing system that delivers smooth operation. The slide is built tough with an anodized aluminum cylinder block, top plate and front toolbar plus stainless steel rod coupler nuts. The rugged body houses a standard magnetic piston and a repairable air cylinder, and internal rubber bumpers provide a cushioned stop. Round profile sensors feature surge suppression, polarity protection, an LED indicator and extremely fast switching speeds.

Mounting is easy and convenient thanks to side through holes with C-bores in the body, tapped mounting holes on four surfaces and slightly narrower toolbars to allow side mounting clearance between the toolbar and mounting surface. FDH Series compact finger slides are available in 10, 16 and 20 millimeter bores and standard strokes ranging from 5 to 60 millimeters.

Key Specifications

  • Magnetic piston standard
  • Four 4 mm keyhole sensor mounting slots, two per side
  • Rubber bumpers provide cushioned stop
  • Tapped holes on top toolplate
  • Clear anodized toolbar and toolplate
  • Side through holes with C bores in body
  • Side, bottom and rear tapped mounting holes
  • Ports accessed on either side and rear
  • Narrow toolbars, allowing side mounting with clearance between toolbar and mounting surface
Technical Advantages
  • Anodized aluminum with stainless rod coupler nuts
  • Repairable built-in air cylinder
  • Longer strokes for all models
  • New round profile sensors with surge suppression, polarity protection, LED indicator and extremely fast switching speeds
  • Rubber bumpers provide a cushioned stop
  • Versatile load attachment

Application Examples

  • Industrial automation, assembly and packaging
    • Robotics
    • Pick & place machinery
    • Thin parts placers
    • Pallet lift stations
  • Automotive
  • Medical imaging
