Guided Motion Actuators

FGM Series

Exceptional Power and Load Capabilities in a Compact Design

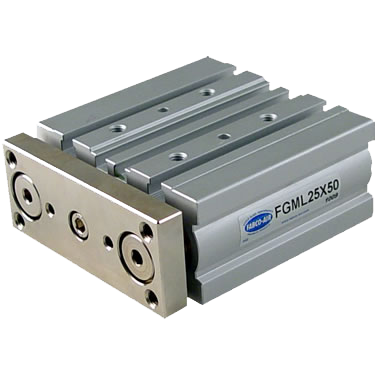

FGM Series guided motion cylinders offer an extended power range and effective load carrying capability. These compact units feature a twin guide shaft design to ensure precise, non-rotating positioning. Customers can choose between the FGMM for ball bearings, and the FGML sintered bronze sleeve bearing. Both cylinders come in a variety of bore sizes, and the FGMM model offers two additional bore diameters to suit smaller-scale applications. Adjustable extended stroke versions are also available.

Key Specifications

Features
  • Bore sizes: 12, 16, 20, 25, 32, 40, 50, 63 mm
  • Strokes from 10 to 100 mm
  • Magnetic piston standard in all sizes
  • Non-rotating design for precision positioning
  • Compact design
  • Operating pressure: 150 psi max.
  • Extended power range
  • Good load carrying capacity
  • Dowel pin holes on each mounting surface.
  • Easily adjustable sensors mountable in linear slots in the housing
Technical Advantages
  • Magnetic pistons are standard on all actuators.
  • The twin guide shaft design provides extended power and load carrying capabilities.
  • Dowel pin holes on each mounting surface provide a choice of four mounting positions.
  • The non-rotating design ensures precision positioning.
  • FGMM and FGML guided thrusters are interchangeable with models from other vendors.

Application Examples

  • Packaging machinery
  • Bending equipment
  • Label tamping
  • Weld fixturing
