Precision Grippers

Advanced Parallel and Angular Jaw Motion Designs

Whether you are looking for small, highly accurate grippers for assembly applications, or wider, larger grippers for the secure movement of larger payloads, you’ll find what you need in our range of Fabco-Air grippers. We have a collection of angular and parallel grippers in a variety of widths, bore sizes and pressures to choose from, including hydraulic and budget options.

Our grippers feature high forces in a compact housing. Each gripper’s body is constructed out of hard-coated aluminum to resist corrosion and abrasion, minimizing maintenance time. A magnetic piston is standard for all grippers and allows you to integrate magnetic sensors to monitor the piston’s positioning. All grippers come either pre-lubricated or do not require additional lubrication, ensuring that each gripper works smoothly and safely.

Parallel Grippers

Two-Jaw Small Parallel Gripper
  • Sizes: 100 to 600
  • Stroke: ¼ to 3 ¾ inches
  • Grip Forces: Up to 402 lbs (C) or 88 lbs (O)
  • Compact, lightweight design
  • Assortment of jaw styles and materials
  • Integral jaw/guide shaft/piston assembly

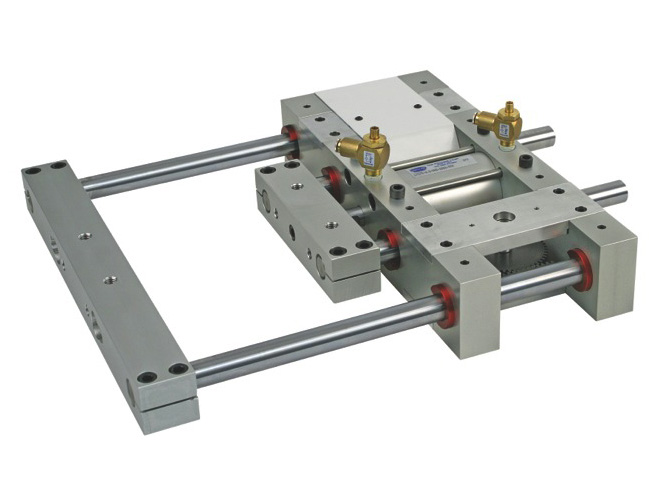

Two-Jaw Large Parallel Gripper
  • Sizes: 50 and 75
  • Stroke: 2 to 24 inches
  • Grip Forces: Up to 310 lbs (C) or 280 lbs (O)
  • Adaptation of Fabco-Air EZ Series Linear Slide
  • Double rack-and-pinion design
  • Multiple jaw and mounting configurations

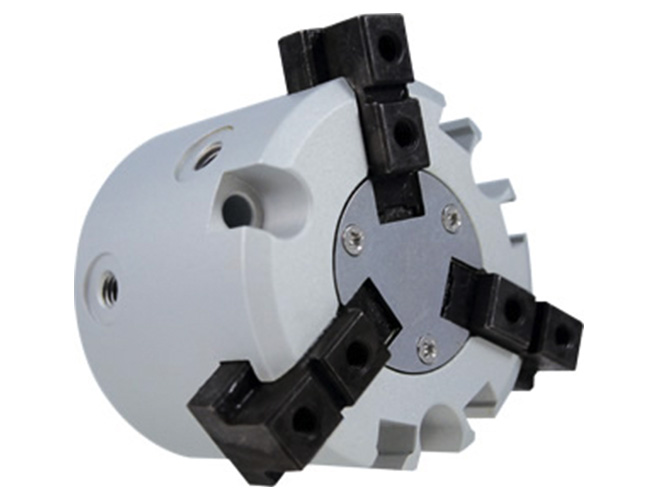

Three-Jaw Small Parts Parallel Gripper
  • Sizes: 25 to 80 millimeters
  • Stroke: 6 to 20 millimeters
  • Grip Forces: up to 525N
  • Compact, lightweight design
  • Magnetic piston standard

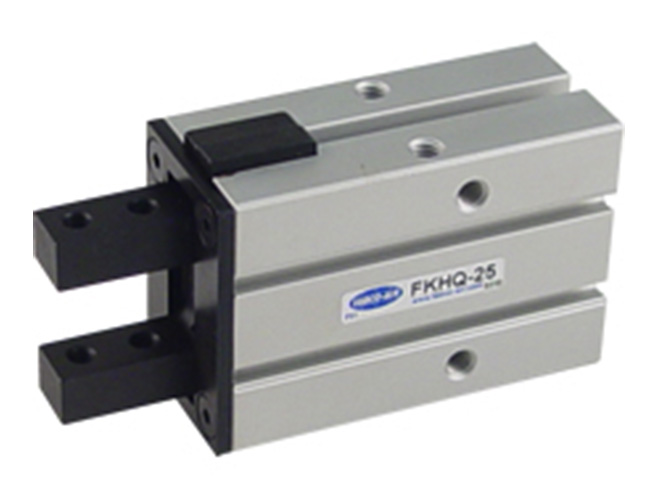

Two-Jaw Compact Parallel Gripper
  • Sizes: 10 to 25 millimeters
  • Stroke: 4.6 to 13.9 millimeters
  • Grip Forces: up to 23.3 lbf
  • Magnetic piston standard
  • Narrow jaw configuration
  • Ideal for handling small parts in tight spaces
Two-Jaw Compact Parallel Gripper
  • Sizes: 10 to 25 millimeters
  • Stroke: 4.6 to 13.9 millimeters
  • Grip Forces: up to 23.3 lbf
  • Magnetic piston standard
  • Wide jaw configuration
  • Ideal for handling small parts in tight spaces

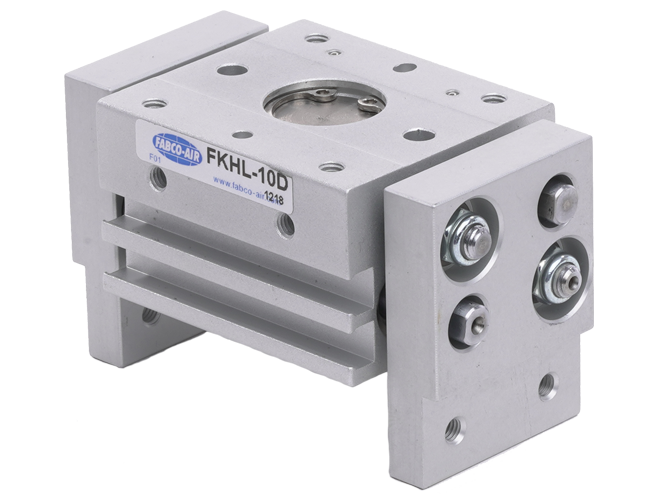

Two-Jaw Wide Parallel Gripper
  • Sizes: 10 to 32 millimeters
  • Stroke: 20 to 160 millimeters
  • Grip Forces: up to 51.2 lbf
  • Magnetic piston and rod scrapers standard
  • Repeatability: +/- 0.2mm
  • Ideal for handling small parts in tight spaces

Angular Grippers

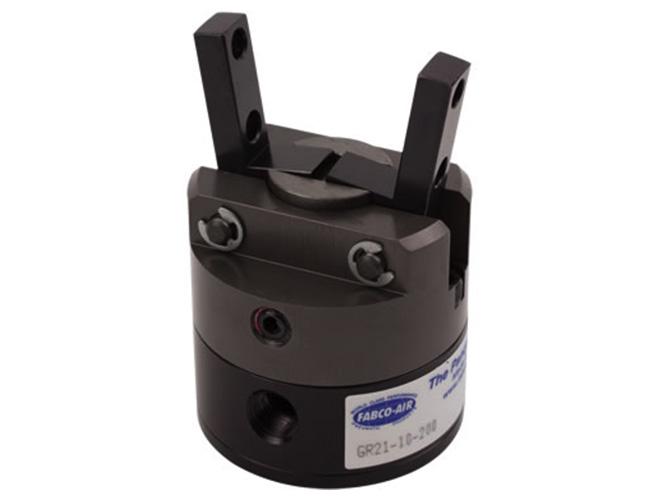

Versatile Angular Gripper
  • Sizes: ⅜ to 2 ½ inches
  • Adjustable jaw open and close positions
  • Available in round or square body design
  • Single and double acting configurations
  • Air or hydraulic service
  • Options include magnetic piston and special seal materials
  • Ideal for robotic pick-and-place applications

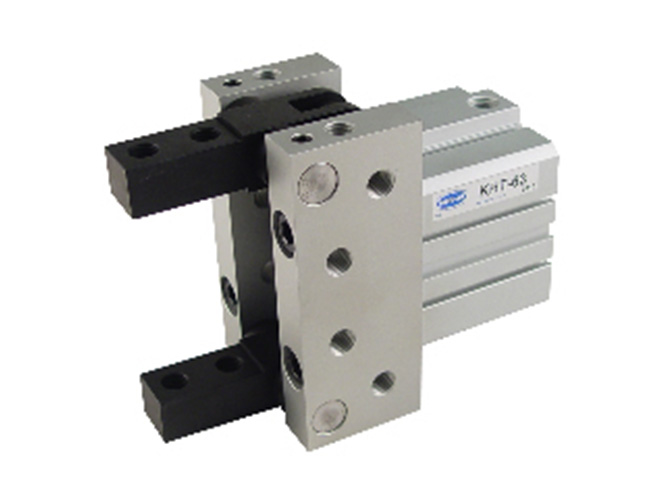

Toggle Type Angular Gripper
  • Sizes: 32 to 63 millimeters
  • Jaw Opening: -2° to 28°
  • Grip Forces: up to 89 lbf
  • Magnetic piston standard
  • Cost optimized
  • Ideal for handling heavy workpieces as toggle design holds workloads even if air pressure drops

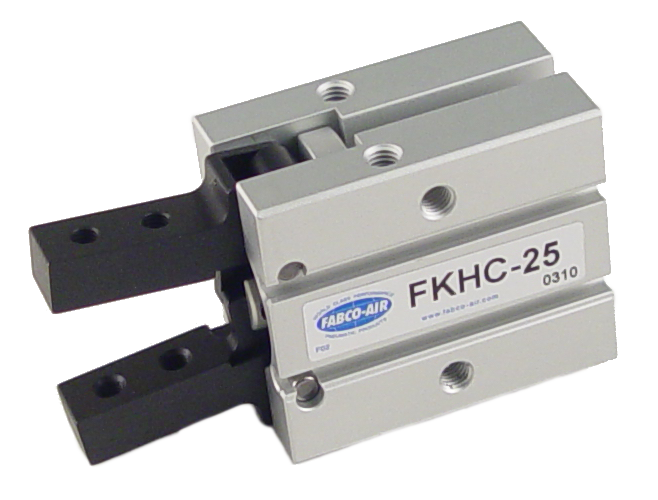

High Force Angular Gripper
  • Sizes: 10 to 25 millimeters
  • Jaw Opening: -10° to 30°
  • Grip Forces: up to 15.7 lbf
  • Magnetic piston standard
  • Adjustable integrated needle valve to control open/close speed
  • Ideal for handling small parts in tight spaces
180-Degree Angular Gripper
  • Sizes: 20 to 32 millimeters
  • Grip Force: 5.1 lbs
  • Rack-and-pinion design for synchronous finger motion
  • Magnetic piston standard
  • Adjustable integrated needle valve to control open/close speed
  • Ideal for handling various sized workpieces in confined areas
