NAMUR Valves

FVEN Series

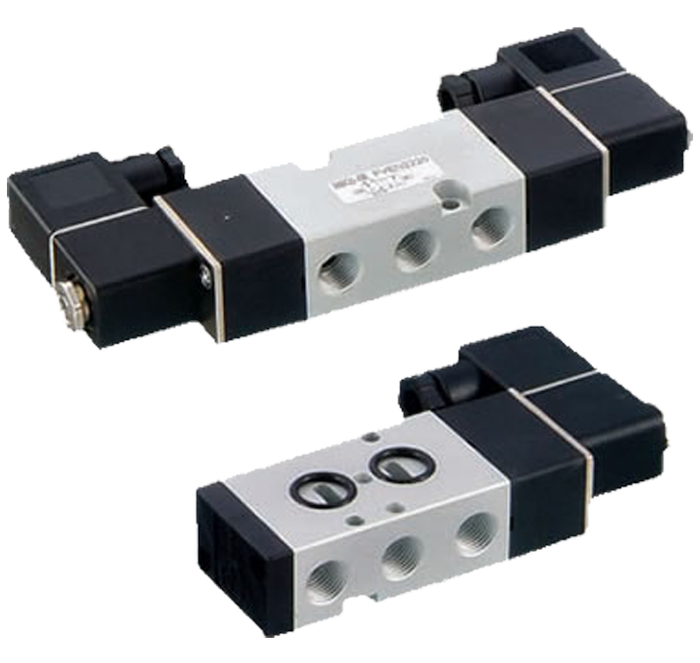

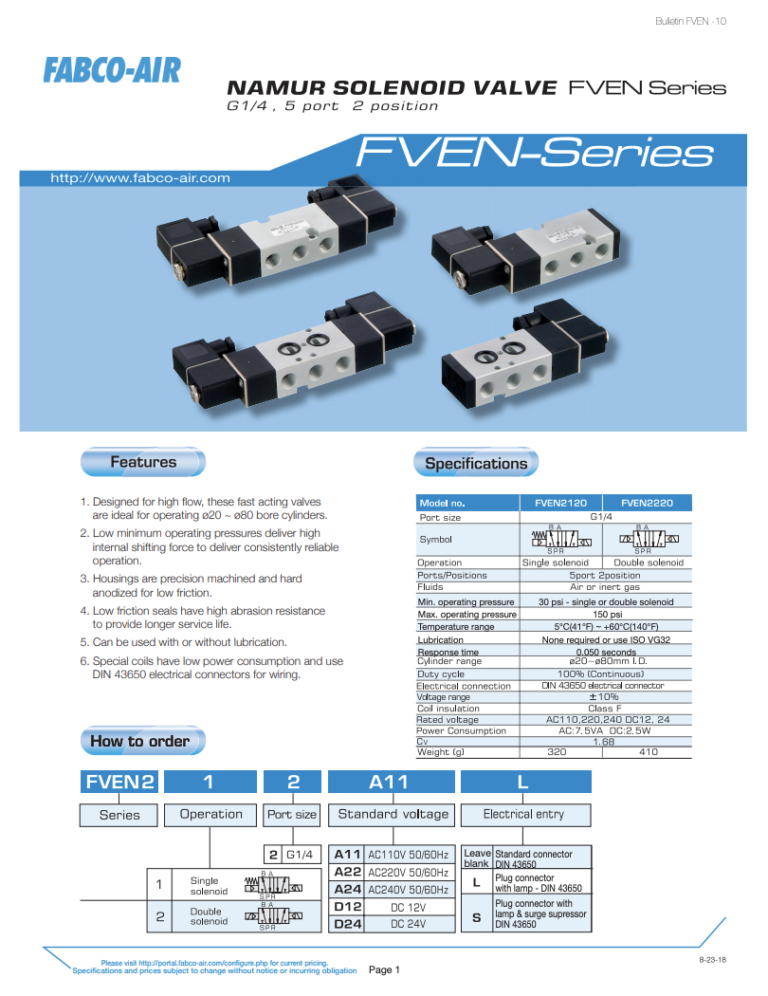

G1/4-Inch, 5-Port 2-Position Valves

The FVEN Series of solenoid 5-port 2-position control valves features NAMUR mounting that attaches directly to the actuator without additional manifolding. These valves are designed for high flow with single or double solenoid model options. With a low-energy consumption, the FVEN’s durable solenoid coil can operate at a 100% continuous duty cycle.

Key Specifications

  • NAMUR mounting is capable of attaching directly to the actuator without additional manifolding.
  • Ideal for operating ø20 ~ ø80 bore cylinders
  • Single or double solenoid models available
  • Housings are precision machined and hard anodized for low friction
  • Low friction seals have high abrasion resistance to provide longer service life
  • No additional lubrication required
Technical Advantages
  • Low minimum operating pressures deliver high internal shifting force to deliver consistently reliable operation.
  • Special coils have low power consumption and use DIN 43650 electrical connectors for wiring.

Application Examples

  • Automotive motor manufacturing
  • Semiconductor processing
  • Medical device manufacturing
  • Medical dispensing
  • Warehouse automation
  • Oil and gas production
  • Process automation
