Flow Optimized Pneumatic Solenoid Valves

FVA and FVEC Series

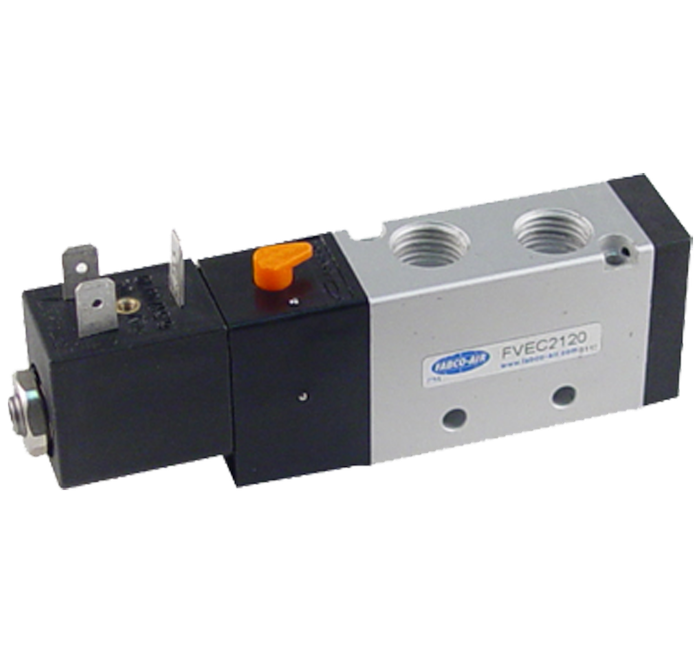

Customizable Solenoid and Air Pilot Valve Stack

The FVA and FVEC Series of air pilot and solenoid valves are high-flow valves available with ⅛, ¼, ⅜ and ½ NPT ports in 4-way or 3-way Normally Closed positioning. These valves have multiple options and include 2- and 3-position spools. With manifolds ranging from two to ten stations, there are plenty of customization options available.

Key Specifications

  • Fast-acting valves designed for high flow
  • Low friction seals with high abrasion resistance
  • Can be used with or without lubrication
  • Available with or without manifolds
  • DIN/ISO Standard connectors (DIN43650)
  • Manual override
  • Duty cycle: 100%, no coil damage after continuous voltage application
  • Fifteen million cycle life in normal usage
  • Special machining and hard anodized body
Technical Advantages
  • High flow packages have capacity for large cylinders.
  • Low friction/resistance of spool seal provides longer seal life.
  • Four voltages are available:
    • DC 12V
    • DC 24V
    • AC 110V 50/60 Hz
    • AC220V

Application Examples

  • Hydraulic braking systems
  • Vehicle transmissions
  • Heavy machine hydraulics
  • Medical dispensing
  • Equipment sterilization
  • Sample processing
  • Semiconductor manufacturing
  • Indexing, sorting and pick-and-place

Custom Solutions
