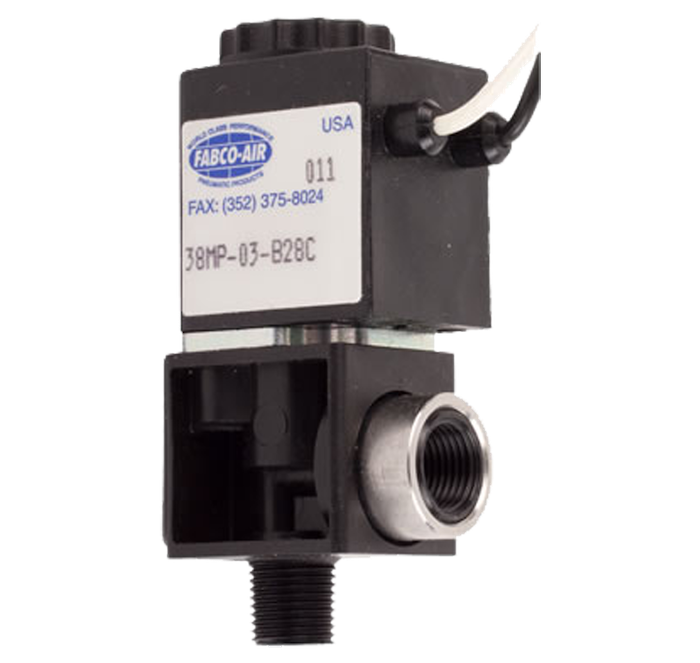

Composite Body Poppet Valves
38MP, 3853 and
3953 Series
Lightweight 2- and 3-Way Normally Closed or Normally Open Directional Control Valve
Fabco-Air’s 38MP, 3853 and 3953 Series composite body poppet valve features a number of options to best suit your fluid control system. Available in both 2-way and 3-way normally open or closed functions and seven orifice sizes, the body is created from predominantly lightweight and corrosion-resistant composite materials.
Component features include a nylon encapsulated coil, optional seal materials and a choice between a brass/stainless steel or all stainless steel solenoid operator. The DuPont Zytel FE 5015, FDA-approved composite material is media compatible, eliminating the need for stocking multiple body materials. The 3953 Series is a compact, stackable version of the 3853 Series.
Key Specifications
Features
- Composite material
- Chemical compatibility
- Operating temperature: -10 to +50° C
- Seven orifice sizes
- Easily replaceable orifice
- Vacuum holding and flow applications
- Pressure to 270 psi
- DIN spades or flying leads
Technical Advantages
- Available in brass/stainless or all stainless pilot design
- Available in both 2-way and 3-way normally open or closed functions
- Vacuum holding and flow applications
- DuPont Zytel FE 5015, FDA-approved composite material available
Related Industries
Application Examples
- Hydraulic braking systems
- Vehicle transmissions
- Heavy machinery hydraulics
- Medical dispensing
- Semiconductor manufacturing and testing
- Pasteurization systems
- Food preparation systems
