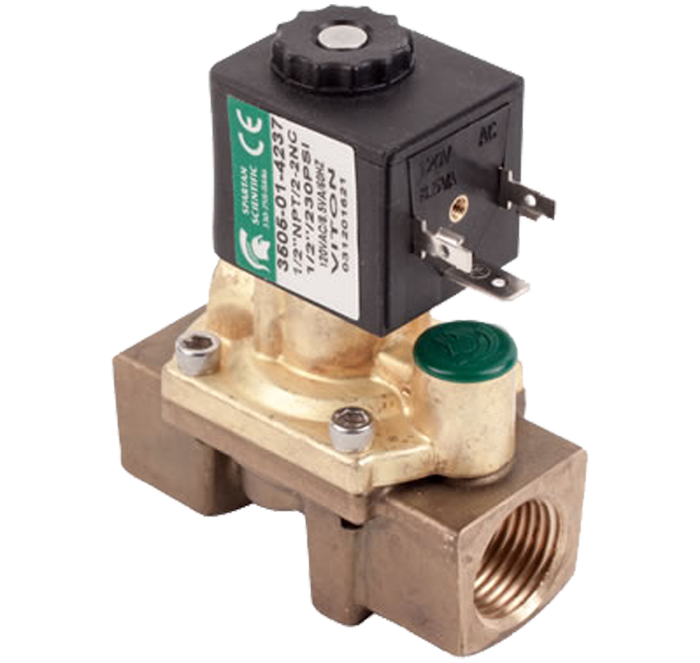

Brass Body Diaphragm Process Valve

3500 Series

2-Way, 2-Position Normally Closed/Open Solenoid Valves


The 3500 Series solenoid valve is a robust, compact valve that combines the latest injection molding and forging technologies. The molded pilot section features a quick connect DIN 43650 “A” electrical connection, high-cycle solenoid parts and a push non-locking manual override. The forged body is available in ¼, ⅜ and ½ NPT sizes. When used as a directing acting/pilot operated valve, this series gives full flow throughout the pressure range starting with an MOPD of zero psi.

Key Specifications

Features
  • Available in ¼, ⅜ and ½ inch NPT sizes
  • Operation up to 230 psi
  • Operating temperature: 14° to +176° F
  • Quick connect DIN 43650 “A” electrical connection
  • Forged brass and glass-filled nylon body
  • AISI 400 and 300 Series stainless steel or brass operator
Technical Advantages
  • Push non-locking manual override
  • Additional material options upon request
  • Connectors available for ISO “C-Tab” Spades

Application Examples

  • Hydraulic braking systems
  • Inert gas control
  • Condensate draining
  • Medical dispensing
  • Semiconductor manufacturing and testing
