Our Products

High Force Actuators

A Full Range of Actuators for When You Need Greater Output Forces


Some applications demand greater output force than possible with a conventional cylinder. That’s why we offer a full range of high-power actuators to complement our comprehensive actuator lineup. Highlights include the Hi-Power family with long strokes versus overall length to achieve maximum space efficiency, and the Multi-Power® family designed with multiple pistons attached to a single rod to deliver tremendous thrust forces.

We also offer series that conform to NFPA specifications to give you the convenience of interchangeability. For applications requiring hydraulic performance, the HHD Series 3,000 psi-rated actuator is especially suitable for heavy duty applications, and our Air-Oil Tanks provide hydraulic-type motion control along with smooth speed and good rigidity. We can also enhance your assembly operations with desktop and portable crimpers that boost productivity and reduce operator fatigue.

Our Products

Multi-Piston High Force Actuators

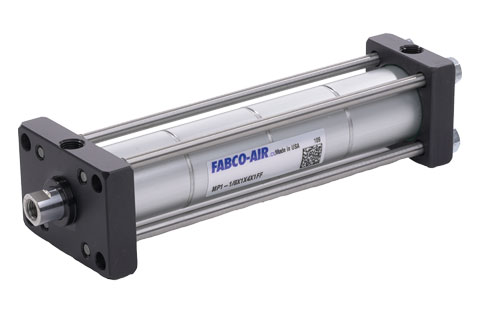

Multi-Power®

  • Multi-Power Principle delivers tremendous thrust forces
  • Available in 10 bore sizes from 1 ⅛ to 12 inches
  • Composite rod bearing for longer life
  • Prelubed with Magnalube-G® Teflon grease
  • Chrome-plated stainless steel piston rods
  • Variants include Pancake®, Pancake II, LONGSTROKE™ and Square 1® versions plus air presses and boosters
Multi-Piston High Force Actuators

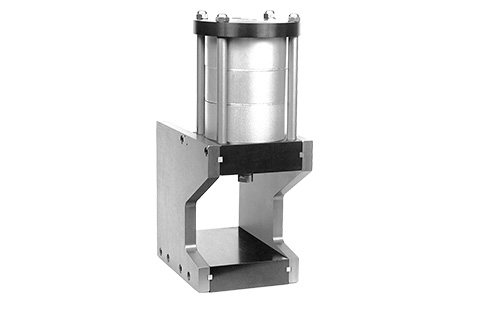

Multi-Power® Air Presses

  • Multi-piston design to deliver tremendous forces
  • Cylinder bore sizes from 1 ⅛ to 12 inches and strokes to 12 inches
  • Precision framework with power factors from 19.6 to 93 times line pressure
  • Pre-lubed with Magnalube-G® Teflon™ grease
  • Chrome-plated stainless steel piston rods
  • Long-length composite bearing for long life

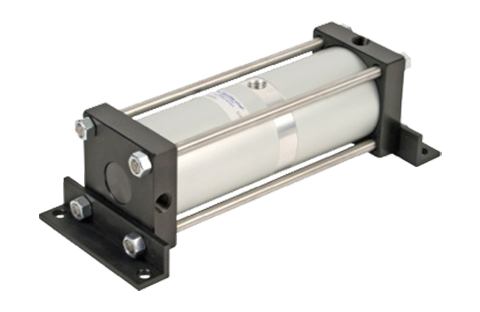

Multi-Power® Boosters

Series BA and Series BP

  • Outputs of 4.9 to 12.5 cubic inches per inch of stroke
  • Standard strokes: 1 inch increments through six inches
  • 1.9 through 4.8 power factors
  • Heavy-duty, corrosion-resistant construction
  • Two ports in boost chamber for inlet/outlet
  • Internally lubricated Buna-N seals
Tie Rod Cylinders

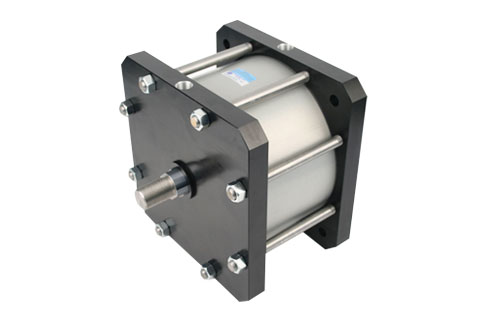

Hi-Power®

  • Available in 10 bore sizes from 1 ⅛ to 12 inches
  • Standard strokes to 12 inches
  • Composite rod bearing for longer life
  • Prelubed with Magnalube-G® grease
  • Chrome-plated stainless steel piston rods
  • Air service to 250 psi and hydraulic service to 500 psi
Hydraulic Heavy Duty Cylinders

Series HHD

  • Pressure rated to 3,000 psi hydraulic service
  • Available in 16 bore sizes from 1 ½ to 24 inches
  • Extra-long rod, high strength cartridge provides maximum bearing support
  • Circular rod bushing retainer to remove the rod cartridge without disassembling the cylinder
  • Fine-grained cast iron piston
  • Over 20 NFPA standard mounting options
High-Force Actuators

Air-Oil Systems

  • Single- or double-tank units with choice of 1 ¼, 2 and 4 inch ID tanks
  • Double tank units save space in two-direction control systems
  • Translucent fiberglass tube for fluid visibility
  • May be used as storage tanks in booster systems
  • Can be combined with a Multi-Power® Booster
  • Operation to 150 psi
Pneumatic Crimping Tools

300 Series

  • Fast, uniform connections with less operator fatigue
  • Bench mountable or portable units available
  • Pressure rated for 85 to 100 psi
  • Quick-change jaws for reduced setup time
  • Normally closed jaw design for safety

Custom Solutions
