Square 1®
Bore sizes: 12, 16, 20, 25, 32, 40, 50, 63, 80 and 100 millimeters Strokes: up to 150 millimeters Pressure rated to 150 psi for both pneumatic and hydraulic service Machined from the highest quality aluminum bar-stock and hard anodized for corrosion resistance Cylinders pre-lubed with Magnalube-G® Teflon™-impregnated grease
FAQ2R
Bore sizes: 32, 40, 50, 63, 80, 100, 125 millimeters Strokes: up to 1,000 millimeters Magnetic piston standard in all sizes Single and double-rod versions ISO 6431 dimensional interchange VDMA24562 compliance Adjustable air cushions at both ends

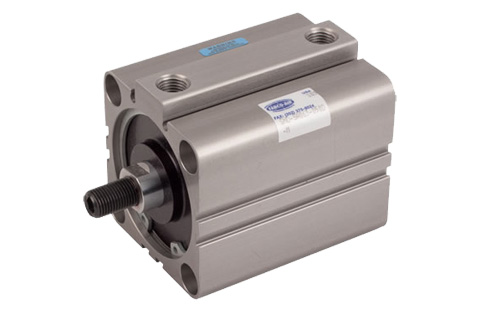

Global Series™ and GT Series
Bore sizes: 12, 16, 20, 25, 32, 40, 50, 63, 80 and 100 millimeters Strokes: up to 150 millimeters High quality, compact air cylinder bodies machined from the highest quality aluminum bar-stock Air cylinder bodies hard anodized for superior appearance and corrosion resistance Cylinders pre-lubed with Magnalube-G® Teflon™-impregnated grease
H Series
Bore sizes: ½, ¾, 1 1/16, 1 ¼, 1 ½, 1 ¾, 2 and 2 ½ inches Strokes: up to 12 inches Legacy actuator for applications where an F Series roundbody cylinder is not an option. Pressure rated to 200 psi pneumatic service Magnetic piston option for cylinder position sensing Many standard options and configurations available
Pancake® II
Bore sizes: ½, ¾, 1 1/16, 1 ½, 2, 2 ½, 3 and 4 inches Strokes: up to 9 7/8 inches Effective output motion with short strokes for space-constrained applications High strength aluminum alloy Hard chrome-plated stainless steel piston rod Composite rod bearing for reduced wear
NFPA and OEM NFPA FCQN Series
Interchangeable with NFPA standard dimensions Bore sizes from 1 ½ to 8 inches, standard Bore sizes up to 14 inches upon request Magnetic pistons for position sensing Lubricated with Magnalube-G® Teflon-impregnated grease Durable construction
FVEN Series
Flow rate: Cv = 1.7 Port size: G1/4 ports NAMUR mounting attaches directly to the actuator without additional manifolding Designed for high flow with single or double solenoid model options Features 100% continuous duty cycle
FVA and FVEC Series
Flow rate: Cv = 0.7 to Cv = 2.8 Port sizes: ⅛, ¼, ⅜ and ½ NPT Individual or manifold mount Fast-acting valves designed for high flow Multiple options include 2- and 3-position spools Individual or manifold mount Manifolds range from two to ten stacks Fifteen million cycle life in normal usage Special machining and […]
12, 12A, 12B and 38 Series
Flow rates: Cv = 2.2 to Cv = 6.2 Port sizes: ½ NPT (12 Series), ⅜ NPT and ½ NPT Manifold (12A Series), ½ NPT High flow (12B), ⅜ NPT (38 Series) Constructed from lightweight aluminum with hard anodized aluminum spools Spool cushioned with Delrin®-urethane bumper combination that absorbs shock but does not bounce the […]
