FRC Series
Bore sizes: 16, 20, 25, 32 and 40 Rack-and-pinion mechanism 190-degree rotation 150 maximum psi Compact design Standard magnetic pistons Standard adjustable air cushions Reed or electronic LED sensors Anodized aluminum and stainless steel parts
FJU and FJUK Series
Bore sizes: 6, 10, 16, 20, 25, 32 millimeters Strokes: up to 50 millimeters Lightweight, compact body Four extruded slots for mounting sensor Hard anodized aluminum for corrosion resistance Hard chrome-plated steel piston rod
Stopper Cylinders, ST Series and Global Stopper Cylinder
ST Series: 32, 40 and 50 millimeter bores and operation at 145 psi ST Series: Piston speed: 50 to 100 mm/second ST Series: Buna-N bumpers at both ends
FRB Series
Bore sizes: 10, 15, 20 and 30 Vane type Rotation: 90, 180 and 270 degrees 22 minimum psi Ultra-compact design Types: basic, angle adjustment or position sensing Optional position sensing
Miniature, Micro-Fine™, Swivel, Port-Mounted and SuperVee™ Series
Miniature Series allows you to choose between 1-way or 2-way flow, panel mounting and flow control models, all constructed from durable brass Micro-Fine™ Series designed to provide high control of gasses and liquids, available in both needle or flow valve models Swivel, Port-Mounted line provides a 360° swivel on all models, multiple size options and […]
53 Style
Flow rate range: Cv = 0.05 to Cv = 0.23 Port sizes: ⅛ NPT and ¼ NPT (Hex body), 10-32 and ⅛ NPT Modular Compatible with air, water and other fluids with standard Buna-N seals Explosion-proof coils available Available in both single or multiple manifold versions Miniature includes pressure manifold plugging, allowing for multiple pressures […]
FAQ2R
Bore sizes: 32, 40, 50, 63, 80, 100, 125 millimeters Strokes: up to 1,000 millimeters Magnetic piston standard in all sizes Single and double-rod versions ISO 6431 dimensional interchange VDMA24562 compliance Adjustable air cushions at both ends
FAE Series
Bore sizes: 12 to 40 millimeters depending on barrel construction Strokes: up to 1,000 millimeters (single rod) and 500 millimeters (double rod) ISO 6432 dimensional interchange and CETOP RP52P compliant Available in single and double-rod versions Magnetic piston standard in all sizes

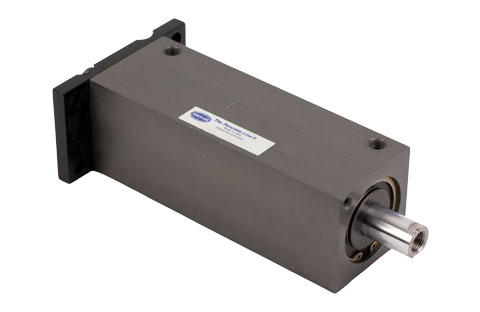

Square 1®
Bore sizes: 12, 16, 20, 25, 32, 40, 50, 63, 80 and 100 millimeters Strokes: up to 150 millimeters Pressure rated to 150 psi for both pneumatic and hydraulic service Machined from the highest quality aluminum bar-stock and hard anodized for corrosion resistance Cylinders pre-lubed with Magnalube-G® Teflon™-impregnated grease
