Single and Double Block-style Linear Slides
Standard bore sizes from 3⁄4 to 3.25 inches (6 total) Standard strokes up to 30 inches Robust design includes four pre-loaded, sealed linear ball bearings and is powered by a tie-rod style actuator Many standard options and flexibility for specials Available in single or dual bearing block configurations Single bearing block SE Series for applications […]
EZP Series
Bore sizes: 1.125 or 2 inches horizontal; 1.125 inches vertical Stroke: up to 18 inches Combined horizontal and vertical motion Hard-coated aluminum cylinder tube Hard chrome-plated 303 stainless steel piston rod Buna-N U-Cup rod and piston seals. (Viton Available) High-strength aluminum end caps
TS Series
Standard bore sizes from 1 ⅛ to 4 inches (6 total) Standard strokes up to 20 inches Unique, leverages a standard cylinder body as the slide carriage and features twin guide shafts supported by four precision linear ball bearings
FGYSR Series
Standard bore sizes from 10 to 40 millimeters (6 total) Standard strokes up to 1,500 millimeters Magnetically coupled carriage for applications with limited space Interchangeable design
L and S Series Linear Slides
Standard bore sizes from 9⁄16 to 3 inches (6 total) Cost optimized design includes composite sleeve bearings and replaceable roundbody cylinder Available in single or dual bearing block configurations S Series single bearing block for minimum installation footprint L Series dual bearing block for greater stability, increased load capacity, and longer strokes
FDH Series
Standard bore sizes 10, 20 and 30 millimeters Standard strokes up to 60 millimeters Compact design with miniature linear guide driven by built-in, repairable air cylinder for smooth motion Rubber bumpers and magnet standard Assortment of mounting holes on cylinder body and tool-plate for variety of mounting configurations and load attachments
FGXS Series Air Slides Tables
Standard bore sizes from 6 to 25 millimeters (6 total) Standard strokes up to 150 millimeters Dual piston design delivers twice the thrust in a small footprint Assortment of mounting configurations and options including adjustable stroke and shock absorbers
GB Series
Standard bore sizes 12, 20 and 32 millimeters Standard strokes up to 10 inches Robust design incorporates replaceable bearings, stainless steel guide shafts, and built-in repairable air cylinder Interchangeable bolt pattern designed for mounting flexibility

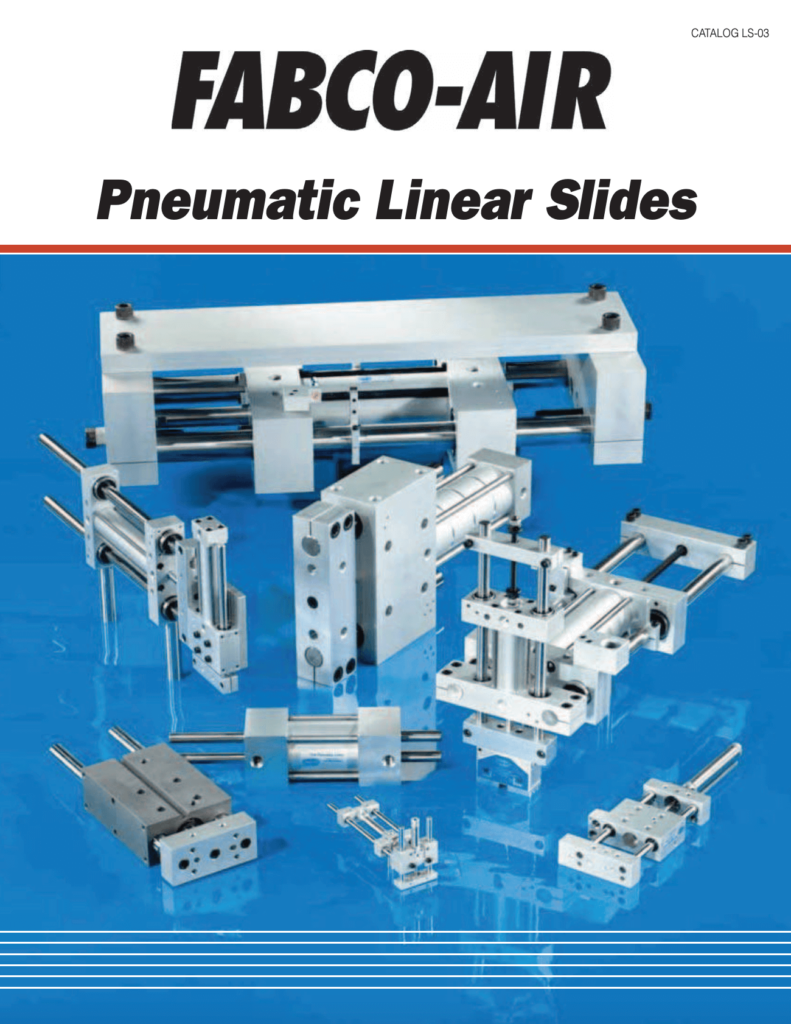

Linear Slides Catalog
