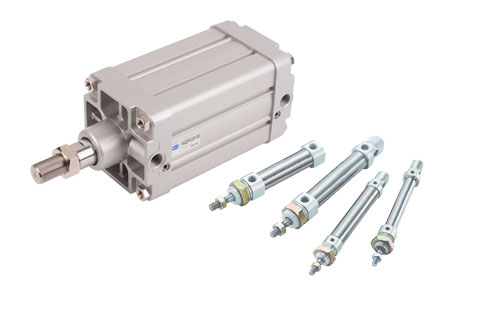

FAQ2R FAE
Bore sizes: 32, 40, 50, 63, 80, 100, 125 millimeters Strokes: up to 1,000 millimeters FAQ2R Series: ISO 6431/VDMA24562 FAE Series: ISO 6432/CETOP RP52P Magnetic piston standard in all sizes Single- and double-rod versions Machined male rod thread with jam nut standard

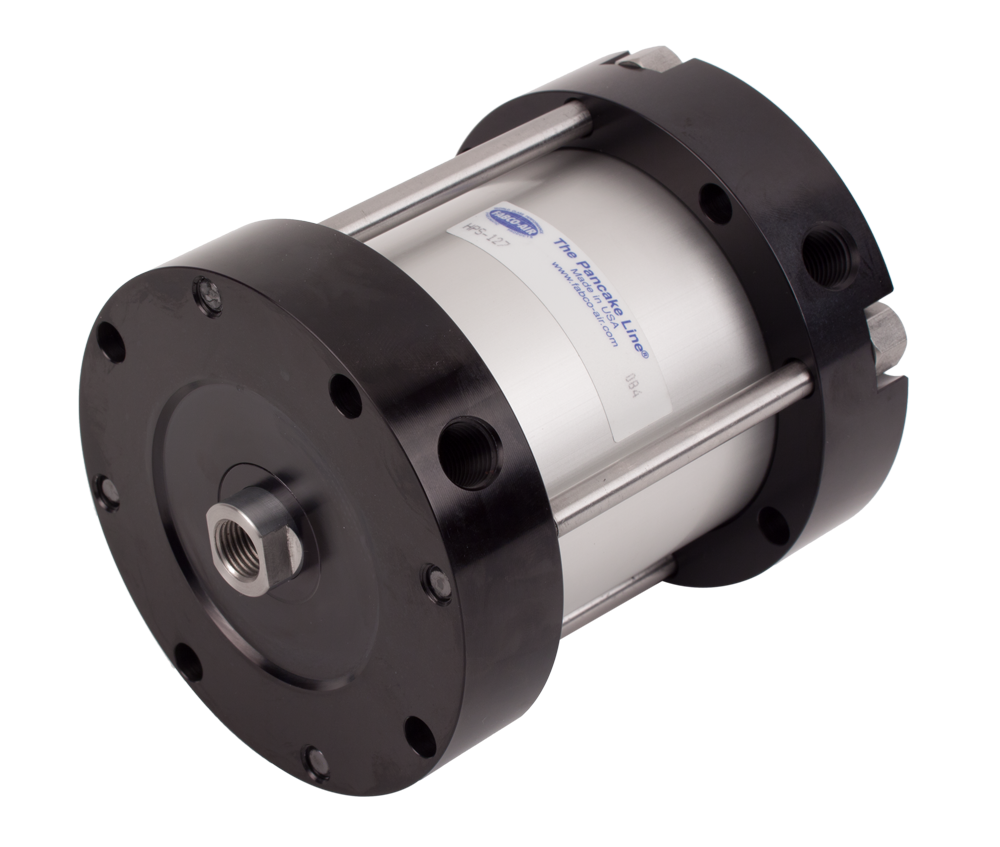

LONGSTROKE Series
Bore sizes: 2, 2 ½, 3 and 4 inches Strokes: up to 12 inches Round and square heads available Clear anodized aluminum cylinder outer diameter and hard anodized bore inner diameter Composite rod bearing for longer life Chrome-plated stainless steel piston rods
SC, FML and FHL Series
Bore sizes: 25, 32, 40, 53, 63 millimeters (12, 16, 20 millimeters also available for SC Series) Hard anodized aluminum alloy housing Hard chrome-plated carbon steel piston rod Buna-N piston seal Magnetic piston for position sensing (SC Series)
FDF and FDXS Series
Bore sizes: 10, 16, 20, 25 millimeters (32 millimeters also available for FDXS Series) Strokes: up to 100 millimeters Magnetic piston standard in all sizes Compact design Twin bores provide double the thrust Non-rotating design for precision positioning Anodized aluminum alloy
FGYB and FGYR Series
Bore sizes: 10, 15, 20, 25, 32, 40 millimeters Strokes: up to 1,500 millimeters Tapped hole pattern on two adjacent sides of the slider Mounting: Nose type (FGYB Series) and block type (FGYR Series) Magnetic piston standard (FGYR Series)
FGM and FGML Series
Bore sizes: 12, 16, 20, 25, 32, 40, 50, 63 millimeters Strokes: up to 100 millimeters Magnetic piston standard in all sizes Non-rotating design for precision positioning Compact design Extended power range Good load carrying capacity
FJU and FJUK Series
Bore sizes: 6, 10, 16, 20, 25, 32 millimeters Strokes: up to 50 millimeters Lightweight, compact body Four extruded slots for mounting sensor Hard anodized aluminum for corrosion resistance Hard chrome-plated steel piston rod
Stopper Cylinders, ST Series and Global Stopper Cylinder
ST Series: 32, 40 and 50 millimeter bores and operation at 145 psi ST Series: Piston speed: 50 to 100 mm/second ST Series: Buna-N bumpers at both ends
H Series
Bore sizes: ½, ¾, 1 1/16, 1 ¼, 1 ½, 1 ¾, 2 and 2 ½ inches Strokes: up to 12 inches Legacy actuator for applications where an F Series roundbody cylinder is not an option. Pressure rated to 200 psi pneumatic service Magnetic piston option for cylinder position sensing Many standard options and configurations available
