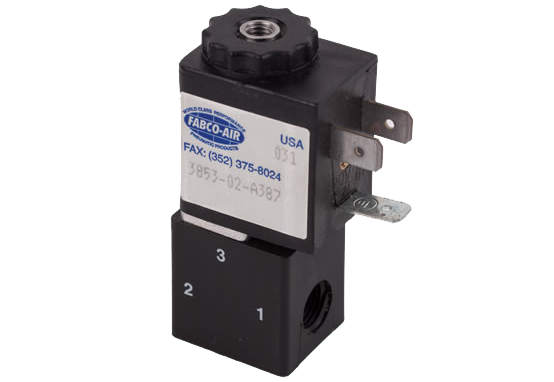

3853 Series
Constructed from media-compatible DuPont™Zytel® FE 5105 Brass/stainless steel or all stainless steel pilot design along with optional sealing materials and a nylon-encapsulated coil FDA-approved options available
3500 Series
Flow rates: Cv = 1.5 to Cv = 2.4 Port sizes: ¼, ⅜ and ½ NPT Robust, compact valves that combine the latest injection molding and forging technologies Molded pilot section features a quick connect DIN 43650 “A” electrical connection, high-cycle solenoid parts and a push non-locking manual override Use as a directing acting/pilot operated valve […]
3510 Series
Flow rates: Cv = 1.5 to Cv = 2.4 Port sizes: ¼, ⅜, ½ NPT Designed with a media compatible polymer body Features a stainless steel anti-flex ring for port strength Use as a directing acting/pilot operated valve gives full flow throughout the pressure range starting with an MOPD of zero psi

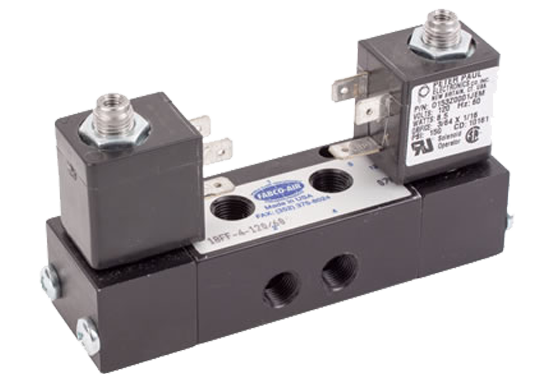

18 Series
Features a lightweight short stroke Delrin® spool for a fast and reliable response Suitable for vacuum directional flow applications, but not for holding vacuum applications Available in nine actuation types
18, 14, M14 and 34 Series
Flow rates: Cv = 0.27 to Cv = 1.0 Port sizes: ⅛ NPT (18 Series), ¼ NPT (14 Series), ¼ NPT Stacking (M14 Series), ⅜ NPT (34 Series) Lightweight short stroke Delrin® spool with dynamic seals for a fast and reliable response Select models of the 14 Series are stackable to optimize cost and space […]
12, 12A, 12B and 38 Series
Flow rates: Cv = 2.2 to Cv = 6.2 Port sizes: ½ NPT (12 Series), ⅜ NPT and ½ NPT Manifold (12A Series), ½ NPT High flow (12B), ⅜ NPT (38 Series) Constructed from lightweight aluminum with hard anodized aluminum spools Spool cushioned with Delrin®-urethane bumper combination that absorbs shock but does not bounce the […]
FVA and FVEC Series
Flow rate: Cv = 0.7 to Cv = 2.8 Port sizes: ⅛, ¼, ⅜ and ½ NPT Individual or manifold mount Fast-acting valves designed for high flow Multiple options include 2- and 3-position spools Individual or manifold mount Manifolds range from two to ten stacks Fifteen million cycle life in normal usage Special machining and […]
FVEN Series
Flow rate: Cv = 1.7 Port size: G1/4 ports NAMUR mounting attaches directly to the actuator without additional manifolding Designed for high flow with single or double solenoid model options Features 100% continuous duty cycle
