Rotary Actuators

Compact, High-Quality Actuators with Arc Lengths up to 270 Degrees


We offer pneumatic and vane-type rotary actuators designed to fit even your tightest industrial installations. Each compact model includes various bore sizes to choose from, as well as a wide range of standard and optional features to meet your unique application requirements.

No matter your rotation angle, pressure or sensor requirements—we have a rotary actuator that will get the job done. Each unit integrates high-quality, durable materials like stainless steel and anodized aluminum, guaranteeing their reliability in demanding conditions. In addition, our actuators include a rack-and-pinion design that minimizes backlash. They’re also easily interchangeable with other actuator types.

Our Products

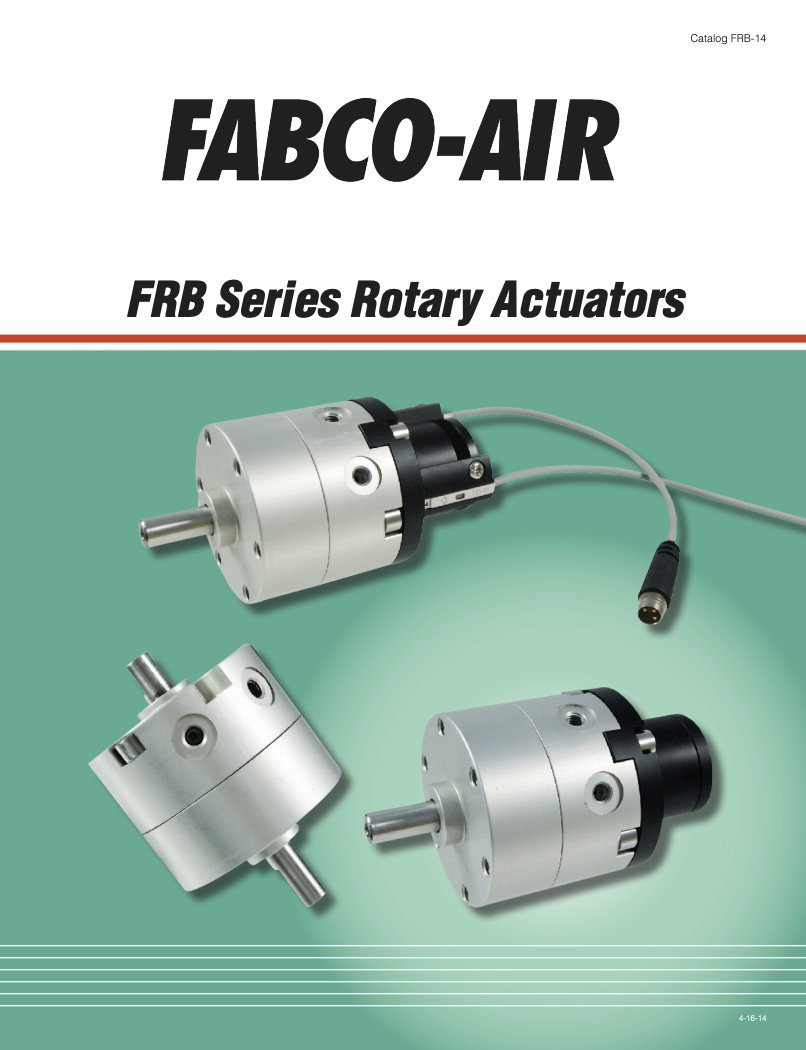

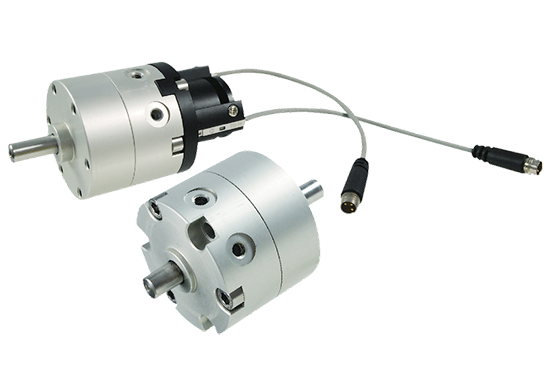

FRB Series
Vane Type Rotary Actuator

FRB Series

  • Bore sizes: 10, 15, 20 and 30
  • Vane type
  • Rotation: 90, 180 and 270 degrees
  • 22 minimum psi
  • Ultra-compact design
  • Types: basic, angle adjustment or position sensing
  • Optional position sensing

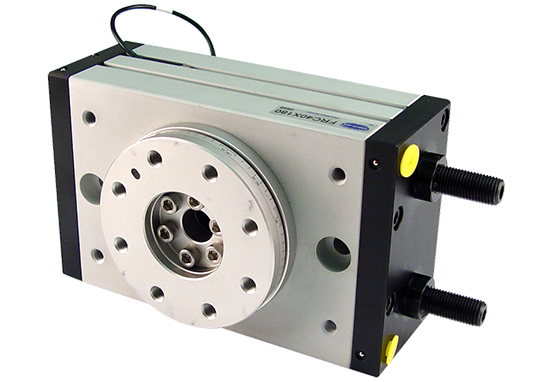

FRC Series
Rack-and-Pinion Type Rotary Actuator

FRC Series

  • Bore sizes: 16, 20, 25, 32 and 40
  • Rack-and-pinion mechanism
  • 190-degree rotation
  • 150 maximum psi
  • Compact design
  • Standard magnetic pistons
  • Standard adjustable air cushions
  • Reed or electronic LED sensors
  • Anodized aluminum and stainless steel parts

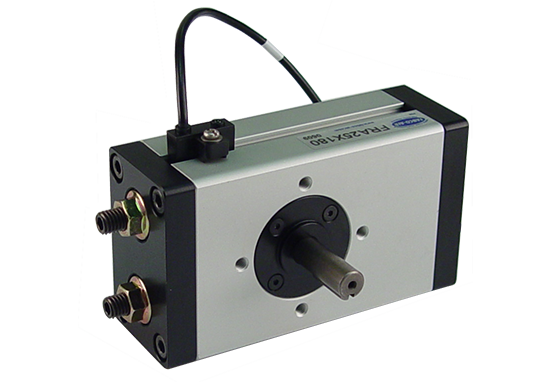

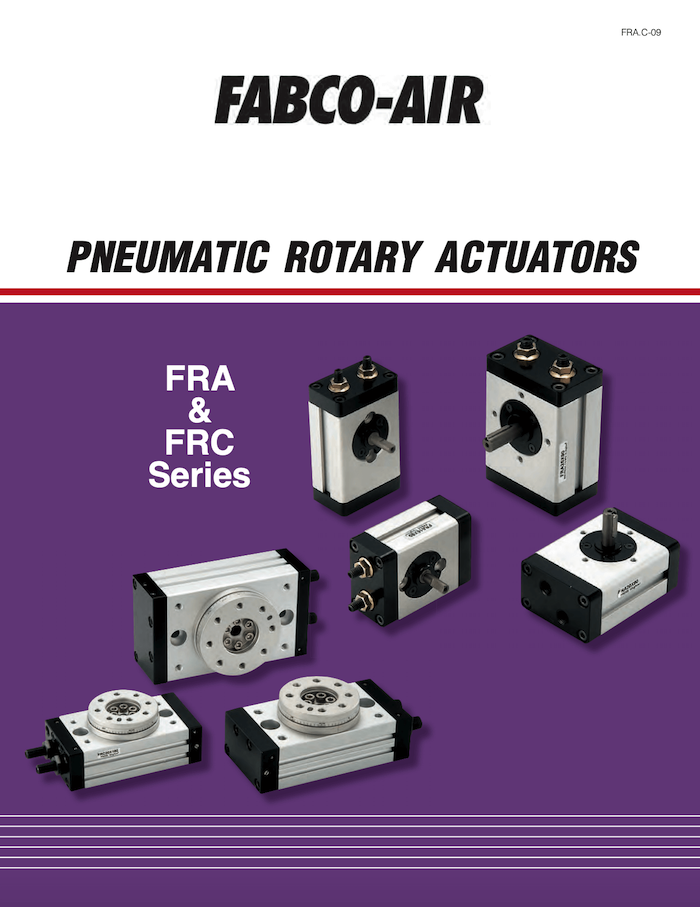

FRA Series
Rack-and-Pinion Type Rotary Actuator

FRA Series

  • Bore sizes: 16, 20 and 25
  • Rack-and-pinion mechanism
  • 90- and 180-degree rotation
  • 100 maximum psi
  • Compact design
  • Standard magnetic pistons
  • Reed or electronic LED sensors
