Hi-Power™
Available in 10 bore sizes from 1 ⅛ to 12 inches Standard strokes to 12 inches Composite rod bearing for longer life Prelubed with Magnalube-G® grease Chrome-plated stainless steel piston rods Air service to 250 psi and hydraulic service to 500 psi
High-Force Actuators, Air-Oil Tanks
Single- or double-tank units with choice of 1 ¼, 2 and 4 inch ID tanks Double tank units save space in two-direction control systems Translucent fiberglass tube for fluid visibility May be used as storage tanks in booster systems Can be combined with a Multi-Power® Booster Operation to 150 psi
Multi-Power® Boosters
Outputs of 4.9 to 12.5 cubic inches per inch of stroke Standard strokes: 1 inch increments through six inches 1.9 through 4.8 power factors Heavy-duty, corrosion-resistant construction Two ports in boost chamber for inlet/outlet Internally lubricated Buna-N seals
Series HHD Hydraulic Heavy Duty
Pressure rated to 3,000 psi hydraulic service Available in 16 bore sizes from 1 ½ to 24 inches Extra-long rod, high strength cartridge provides maximum bearing support Circular rod bushing retainer to remove the rod cartridge without disassembling the cylinder Fine-grained cast iron piston Over 20 NFPA standard mounting options
300 Series
Fast, uniform connections with less operator fatigue Bench mountable or portable units available Pressure rated for 85 to 100 psi Quick-change jaws for reduced setup time Normally closed jaw design for safety

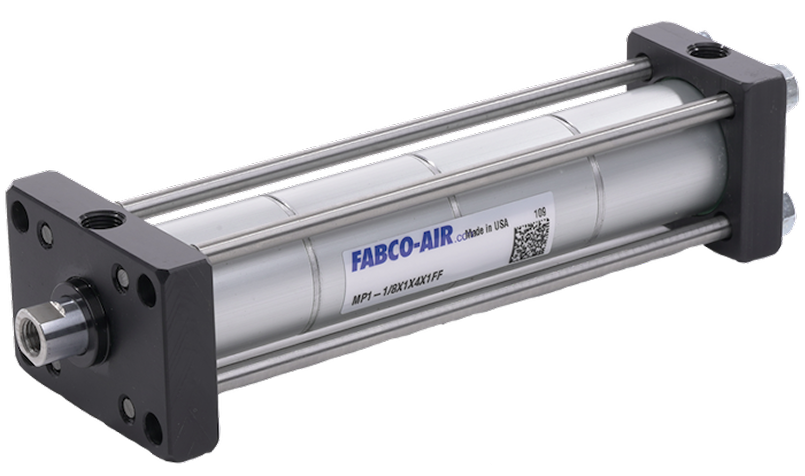

Multi-Power®
Multi-Power Principle delivers tremendous thrust forces Available in 10 bore sizes from 1 ⅛ to 12 inches Composite rod bearing for longer life Prelubed with Magnalube-G® Teflon grease Chrome-plated stainless steel piston rods Variants include Pancake®, Pancake II, LONGSTROKE™ and Square 1® versions plus air presses and boosters
Air Presses, Multi-Power®
Multi-piston design to deliver tremendous forces Cylinder bore sizes from 1 ⅛ to 12 inches and strokes to 12 inches Precision framework with power factors from 19.6 to 93 times line pressure Pre-lubed with Magnalube-G® Teflon™ grease Chrome-plated stainless steel piston rods Long-length composite bearing for long life

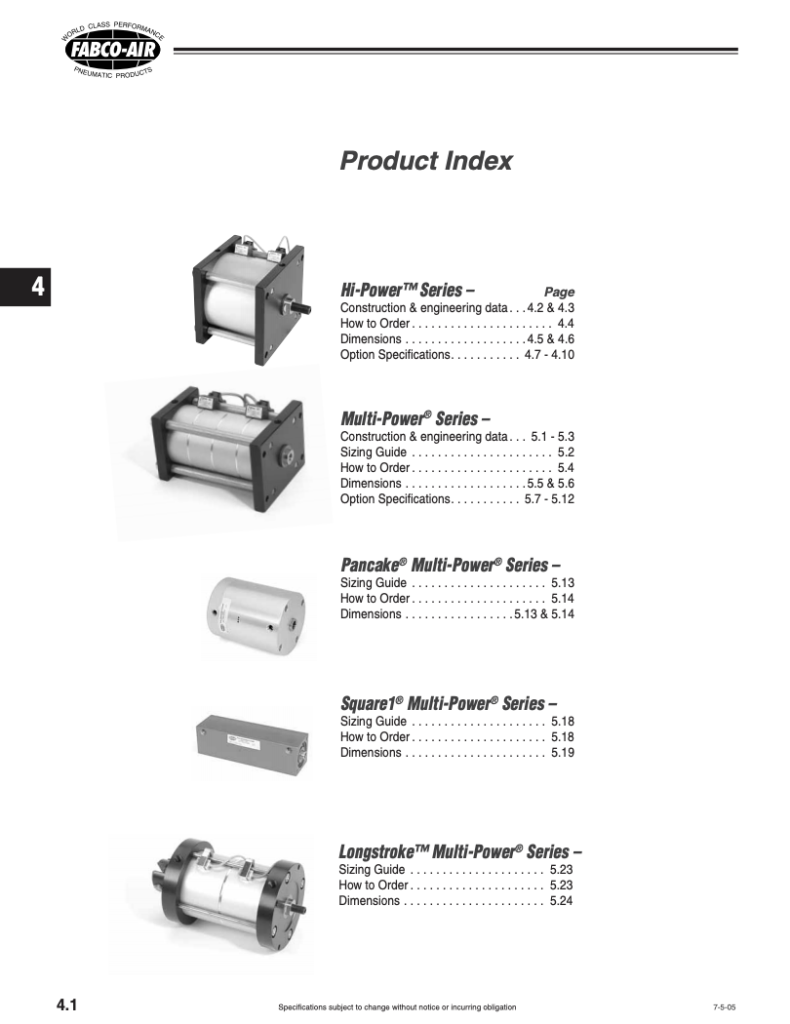

Hi-Power Cylinder section of CV9 Catalog

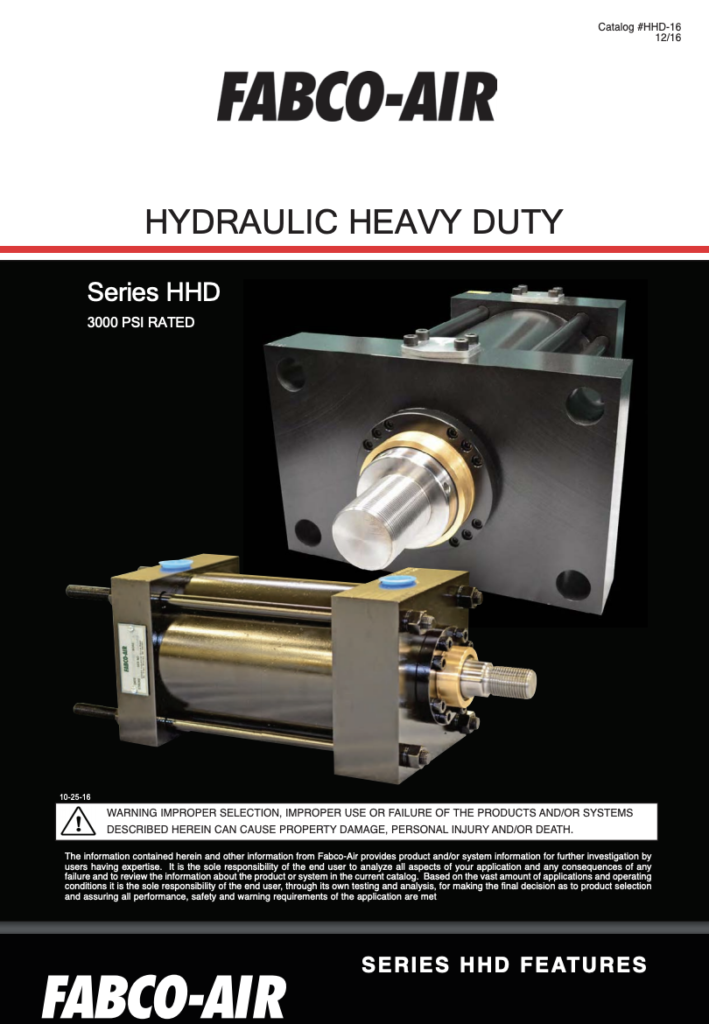

Heavy Duty Hydraulic NFPA Cylinder Catalog
