Fabco-Air | OS, RV and MSV Series

High Performance in Specialized Applications

When a standard valve just won’t fit your project, our line of Special Purpose Valves can help. Each valve is designed for a specialized application:

One-shot (pulse) valve. The OS-1 is an air valve series that provides a momentary output at its cylinder port when pressure is applied at its inlet. This valve is commonly used in signal conversion applications.
Pressure sensing/sequence valve. The RV-1 Series valve is designed to open when a pre-set amount of pressure is applied to provide a pilot signal for circuit control.

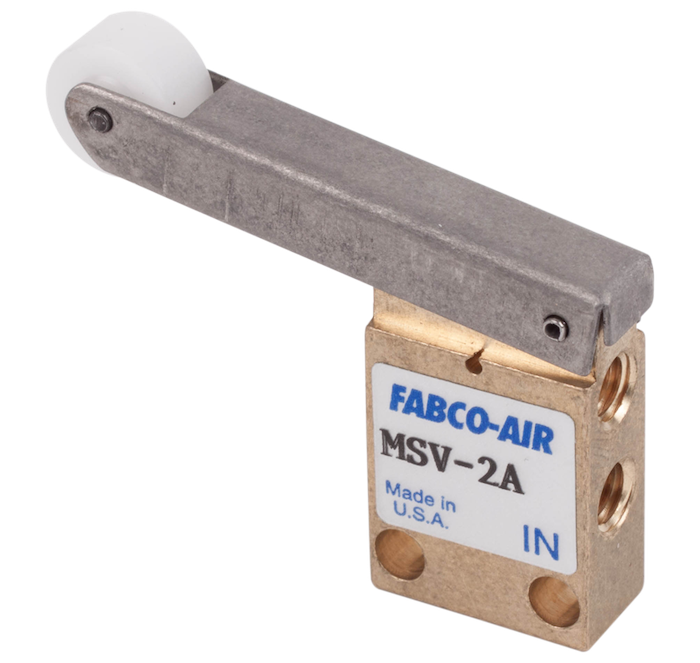

Micro-limit valves. The MSV Series of valves are tiny, poppet-style valves designed for very light actuating forces.
Check and shuttle valves.

Operating temperature: 0° to +180° F
Operating pressure: 20 to 150 psi
- Standard Spring: 50 to 150 psi
- Light Spring: 20 to 55 psi
Corrosion resistant construction
Black anodized aluminum body
Lightweight
Buna-N seals

Operating pressure: 30 to 150 psi
Machined brass bar stock body
Brass internal parts
Buna-N O-ring seals (–30° to +250° F)
Delrin® roller (180° F max.)
Plated steel lever arm
Low operating force
- Lever or roller: 40 psi – 1 oz.; 100 psi – 2 oz.
- Stem: 40 psi – 7 oz.; 100 psi – 16 oz.
Extremely short stroke: 0.005 to 0.010 inch movement of stem normally provides sufficient pilot volume
