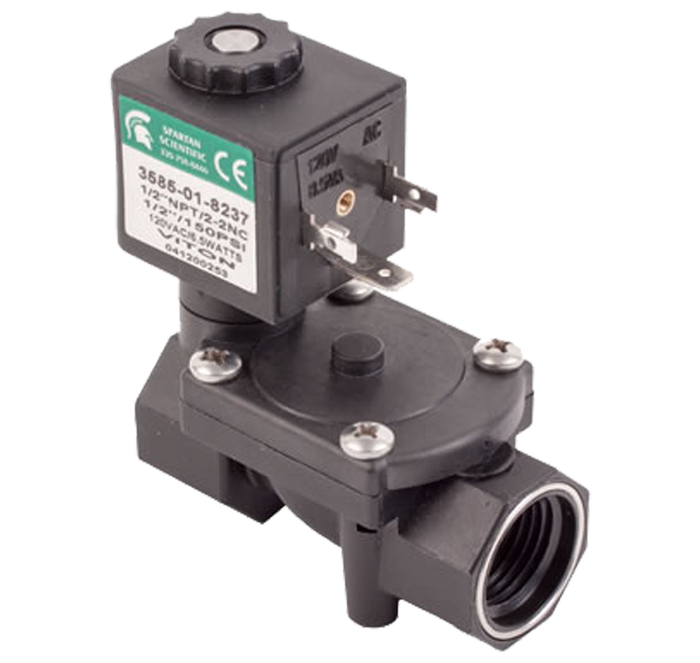

Composite Body Diaphragm Process Valve

3510 Series

2-Way, 2-Position Composite Solenoid Valves

The 3510 Series solenoid valve is a robust, compact valve that utilizes the latest injection molding technologies. Designed with a polymer body, the 3510 is compatible with a number of fluids and other media. Available in ¼, ⅜ and ½ NPT sizes, the 3510 series features a stainless steel anti-flex ring for port strength. When used as a directing acting/pilot operated valve, this series gives full flow throughout the pressure range starting with an MOPD of zero psi.

Key Specifications

  • Available in ¼, ⅜ and ½ inch NPT sizes
  • Operation up to 150 psi
  • Operating temperature: 14° to +22° F
  • Quick connect DIN 43650 “A” electrical connection
  • DuPont Zytel® 77G33 and glass-filled nylon body
  • AISI 400 and 300 Series stainless steel or brass operator
Technical Advantages
  • Push non-locking manual override
  • Additional material options upon request
  • Connectors available for ISO “C-Tab” Spades

Application Examples

  • Hydraulic braking systems
  • Inert gas control
  • Condensate draining
  • Medical dispensing
  • Semiconductor manufacturing and testing
