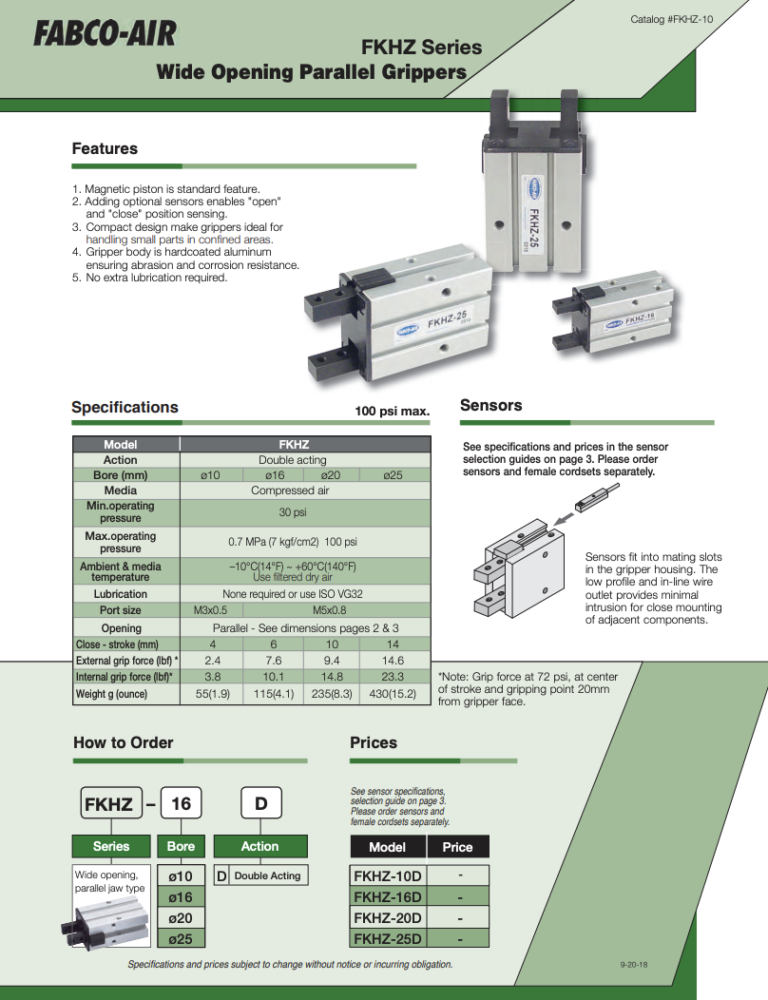

Two-Jaw Compact Parallel Gripper

FKHZ Series

Ideal for Gripping Parts in Smaller Spaces

For smaller parts that require careful handling, the FKHZ Series of parallel grippers can get the job done. This series is built to work in narrow openings common in semiconductor manufacturing, electronics assembly and packaging. No extra lubrication is required, and each gripper is built to hold optional sensors for open and closed positioning.

Key Specifications

  • Available in four bore sizes: 10, 16, 20 and 25 millimeters
  • Operating pressure ranges: 30 psi to 100 psi
  • Operating media: compressed air
  • Internal Gripping Force at 72 psi:
    • 10 mm bore: 3.8 lbf
    • 16 mm bore: 10.1 lbf
    • 20 mm bore: 14.8 lbf
    • 25 mm bore: 23.3 lbf
  • Multiple mounting surfaces


Technical Advantages
  • Magnetic piston standard
  • Integrated sensor slots in the gripper body: easy mounting of sensors for both open and closed position sensing
  • Hard-coated aluminum gripper body: ensures abrasion, combats corrosion
  • No additional lubrication required


Application Examples

  • Injection molding part ejection
  • Finished parts handling
  • Material transfer
  • Pick & place
  • Light part clamping/fixturing
