Three-Jaw Small Parts Parallel Gripper

FKHS Series

Three-Jaw Parallel Motion Gripper With Excellent Repeatability

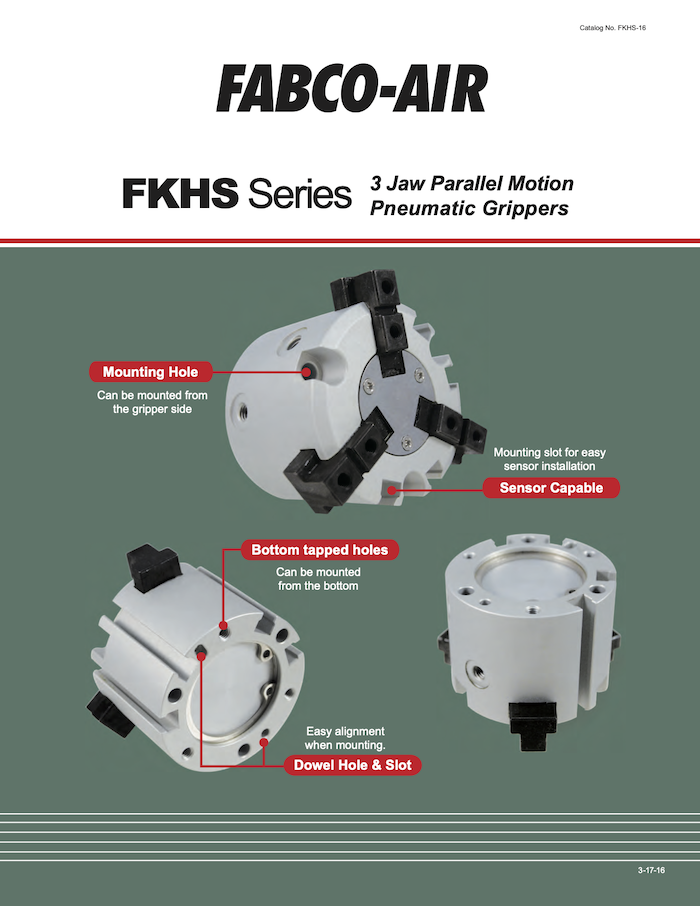

The FKHS Series has a compact design, three-pronged gripper and excellent repeatability. The three-pronged design allows more contact on the grasping part for more accurate centering when compared to two-pronged grippers. Direct body mounting holes on the top and bottom of the gripper make for easy alignment while mounting. Simple and cost-effective, these parallel grippers are well-suited for high-precision jobs in compact spaces.

Key Specifications

  • Available in six bore sizes: 25, 32, 40, 50, 63 and 80 millimeters
  • Operating pressure ranges: 15 to 87 psi
  • Operating media: compressed air
  • Repeatability: +/- 0.1 mm
Technical Advantages
  • Three-jaw gripping for higher accuracy
  • Top and bottom mounting for easy alignment and installation
  • Lightweight design
  • Easy install with dowel pinhole and mounting slot registration
  • Magnetic piston standard
  • “Open” and “close” position sensing with optional sensors

Application Examples

  • Injection molding part ejection
  • General parts handling
  • Material transfer
  • Capping/decapping
  • Round object pick & place
