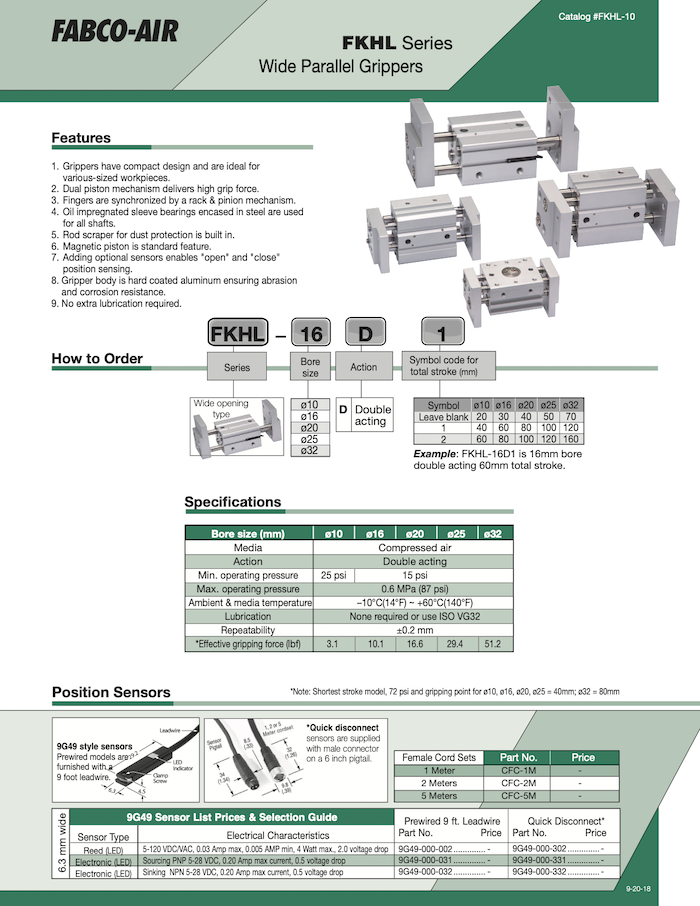

Two-Jaw Wide Parallel Gripper

FKHL Series

Wide Grippers With a Compact Design

With its wide-gripper design, the FKHL Series is well-suited to handle larger parts in high volume jobs. Designed with oil-impregnated sleeve bearings encased in steel, these grippers move smoothly with no need for additional lubrication. The series also includes a built-in rod scraper for easier dust control and maintenance. Our dual-piston mechanism creates a high grip force to make sure the load stays in place.

Key Specifications

  • Available in five bore sizes: 10, 16, 20, 25 and 32 millimeters
  • Available in stroke sizes from 20 to 160 millimeters
  • Operating pressure ranges: 15 to 87 psi
  • Operating media: compressed air
  • Repeatability: +/- 0.2 mm
  • Effective Gripping Force at 72 psi:
    • 10 mm bore: 3.1 lbf
    • 16 mm bore: 10.1 lbf
    • 20 mm bore: 16.6 lbf
    • 25 mm bore: 29.4 lbf
    • 32 mm bore: 51.2 lbf
Technical Advantages
  • Magnetic piston standard
  • Standard rod scrapers for dust and debris protection
  • Oil impregnated sleeve bearings encased in steel on all units
  • Integrated sensor slots in gripper body: easy sensor mounting for both “open” and “closed” position sensing
  • Hard-coated aluminum gripper body: ensures abrasion, combats corrosion
  • No additional lubrication required

Application Examples

  • General parts handling, including heavy loads
  • Injection molding part ejection
  • Material transfer
