Robust Ball Bearing Slides
SE and EZ Series
Simple Interchangeable Slides With Precision and Durability
When your design calls for a linear slide with precision motion, you may expect to sacrifice durability. Our SE and EZ Series of single- and double-bearing block linear slides can eliminate those trade-offs.

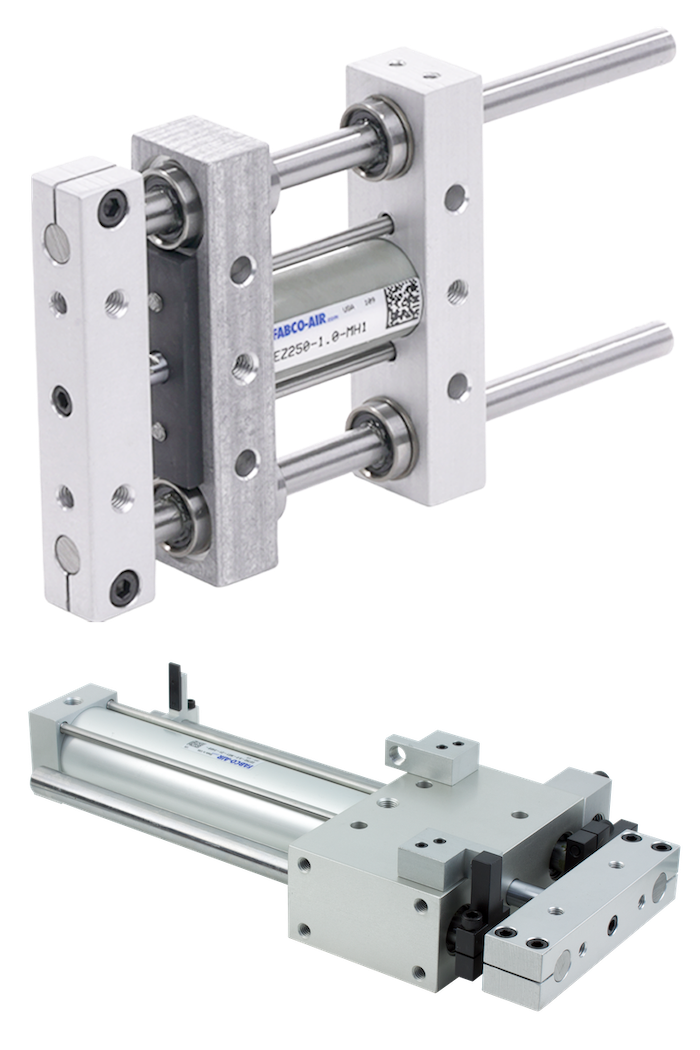

SE Series linear slides — a space-saving version of the EZ Series slide for equipment with moderate side load requirements — are powered by a built-in bearing block that houses four linear ball bearings at each end to deliver precise motion with no play.
Rugged, cost-effective EZ Series slides are built with the guide shafts positioned at either side of the integral air cylinder to resist torsional loads, and the bearings are spaced further apart as stroke increases for exceptional load capacity. SE and EZ slides can be combined to create a custom two-axis EZ unit for maximum flexibility.
Each series has a rugged design that includes a hard-coated aluminum cylinder tube, hard chrome-plated 303 stainless steel piston rod and a choice of case hardened and ground or stainless steel guide shaft.
Key Specifications
Features
- Wide range of sizes:
- SE Series: ½ to 2 ½ inch bore sizes. Strokes range from ½ to 4 inches by ½ inch increments to 8 to 20 inches by 2 inch increments
- EZ Series: ½ to 3 ¼ inch bore sizes. Strokes range from ½ to 4 inches by ½ inch increments to 2 to 30 inches by 2 inch increments
- Space-saving design (SE Series)
- Hard-coated aluminum cylinder tube
- Hard chrome-plated 303 stainless steel piston rod
- Buna-N U-Cup rod and piston seals (Viton available)
- Guide shaft available: case hardened and ground or stainless steel
- Sealed or composite linear ball bearings
- Options and accessories: Reed switches, Hall effect sensors, proximity switches, snap action SPDT electrical switches and air pilot switches
Technical Advantages
- Rugged, clear anodized, aluminum cylinders and pre-loaded, sealed linear ball bearings provide play-free and near play-free operation, depending on the model.
- SE and EZ Series piston rod design eliminates side loads, increasing cylinder seal life and improving performance.
- All like SE models can be joined together to create a two-axis motion device using standard toolbars.
- All like SE and EZ units (except the 250 Models) can be combined.
- The EZ Series integral air cylinder end caps serve as rugged housings for the linear ball bearings. As the stroke increases, the pairs of bearings become spaced further apart, increasing bearing load capacity.
Related Industries
Application Examples
- Robotics
- Pick & place machinery
- Thin parts placers
- Pallet lift stations
- Medical imaging
Custom Solutions
Multi-Power Air Cylinder and Linear Slide Combination for Hydraulic Shock and Speed Control
Fabco-Air created a Multi-Power air cylinder and a linear slide combination that provides adjustable strokes, high power and precision guiding for an automotive application. This custom unit can supply 4,720 pounds of force at 100 psi.
Custom Dual Slide for Washdown Environment
Designed for an application requiring a compact design of two linear pneumatic slides, integrated into a single housing. One of the two slides is actually designed for three position actuation to achieve a truly unique result. All of this was encased in a single, hard anodized body with stainless hardware to enable washdown resistance.
Compact Series Slide with Integrated Rod Lock
Focusing on an application with a tight footprint, this design incorporates a rod lock directly into the bearing block of the slide. This enabled the precision and side load capabilities of a slide while still fitting in the prescribed envelope.
