Our Online Interchange Tool Makes Replacing Your Cylinders a Breeze


Our Online Interchange Tool Makes Replacing Your Cylinders a Breeze

If you’re replacing a pneumatic cylinder, whether with a current machine design or in a production line, finding an exact interchange isn’t always easy. Fortunately, we’ve made this process quick, easy and painless with our online configurator, reference guide and dedicated support team.

And the best part is, once you’ve selected your Fabco-Air replacement cylinder, your lead time is only a few days—ensuring your operation runs with minimal interruption.

Online Configurator Streamlines the Interchange Process

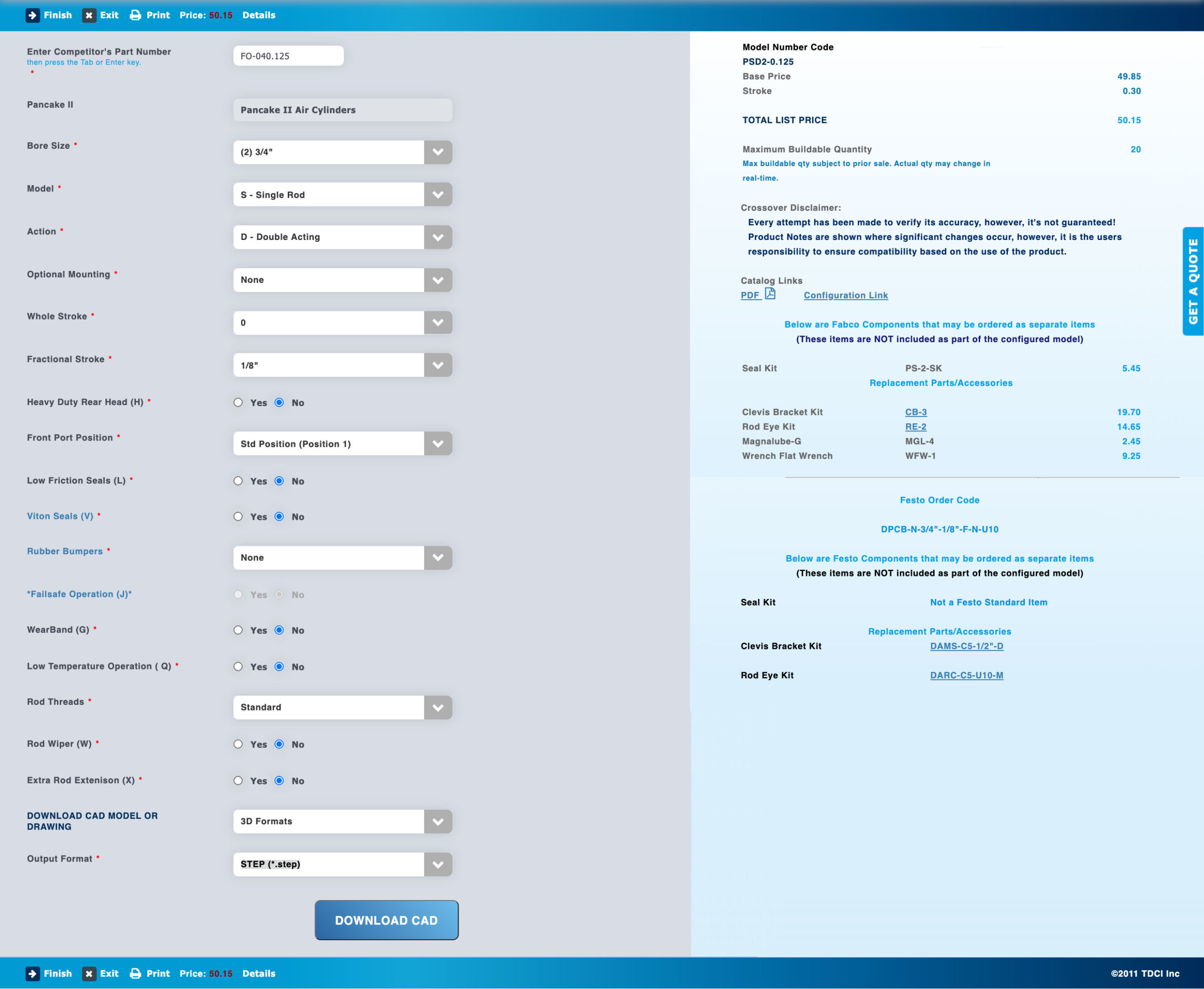

Our first interchange resource is our online configurator. After specifying your current manufacturer, simply enter the number of the part you need to replace. The configurator will automatically display the corresponding Fabco-Air unit—including its pricing, model number, CAD model, catalog link and optional accessories.

This tool also indicates any key differences between your part and its Fabco-Air replacement. Once you’re ready to order, click the quote button at the bottom of your screen, and you’ll receive a response as soon as possible.

Other Technical Resources

In addition to our online configurator, you can glance over all interchange information in one, convenient place using our reference guide, which is located on the “Catalogs” section of our website. If you don’t see your product listed or need additional support, feel free to contact our dedicated team of interchange specialists at crossovers@fabco-air.com. We’ll typically get back to you in less than two days.

Standard and Special Interchanges

Once you navigate our tools and catalogs, you’ll notice many of our popular cylinders are interchangeable models—and we designed them that way. They include:

  • Our F Series of stainless steel cylinders, which are available in 11 bore sizes and standard stroke lengths up to 32 inches. We optimized the design for lead time, cost and flexibility for any modifications you need. Typical lead time is 3-5 days.
  • Our Pancake® II composite body cylinders, which are available in a wide range of sizes, features and options. Typical lead time is 3-5 days.
  • Our NFPA and OEM-NFPA cylinders, which feature a long service life and wide range of NFPA interchangeable mounting configurations. Typical lead time is 5-7 days.

In addition to the cylinders listed above, our interchangeable models include many other products from the Fabco-Air standard product offering. Check out our reference guide for more information.

If you require a special or custom interchange, please contact service@fabco-air.com for questions and guidance, but please include a drawing or specific cylinder requirements. And remember—our lead times apply to all standard and off-the-shelf units.

Visit fabco-air.com/interchange-tool to get started.
